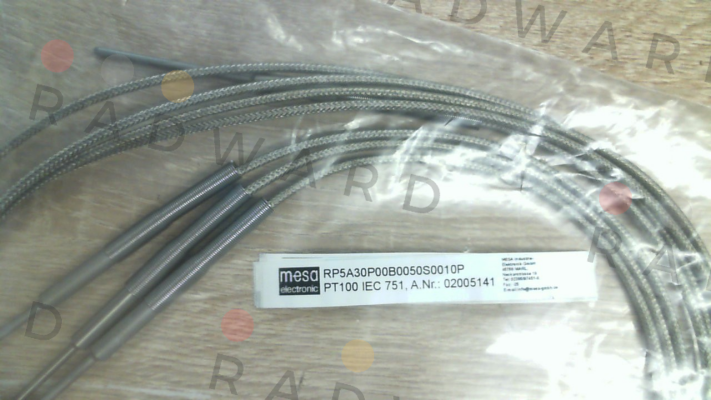

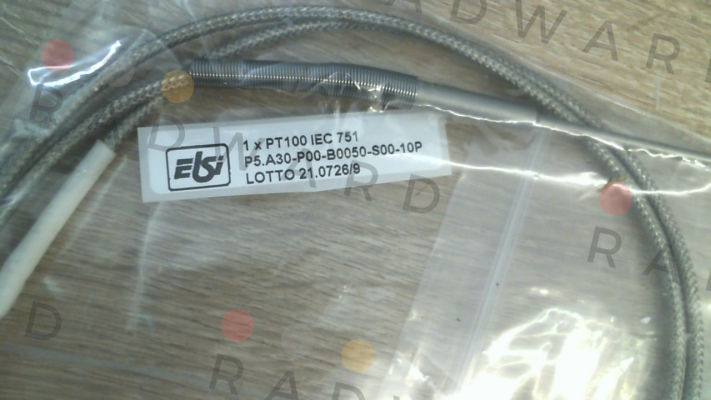

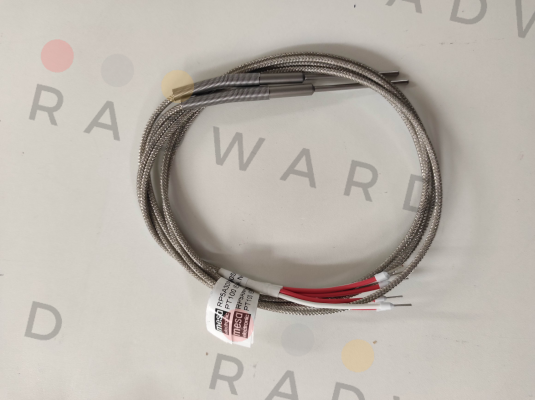

Ascon - RP5A30P00B0050S0010P
| Manufacturer | Ascon |
|---|---|
| Part Number | RP5A30P00B0050S0010P |
| Inner Code | 3896229 |
| Technical specification | RP5A30P00B0050S0010P (replacement for ZTR-27/1PL50) Straight RTD, o. d. from 2 up to 4,5mm, connection wire, optional fixed attaching device. RP5(A)(B)(C)(D)(E)(F)(G)(H)(I)(K) (A) Base A20: EEs-stn 300°C max / 2,0mm Ø G D20: TS 0 200°C max / 2,0mm Ø G G20: Ts t 220°C max / 2,0mm Ø G A30: EEs-stn 300°C max / 3,0mm Ø G D30: TS 0 200°C max / 3,0mm Ø G G30: Ts t 220°C max / 3,0mm Ø G A45: EEs-stn 300°C max / 4,5mm Ø G D45: TS 0 200°C max / 4,5mm Ø G G45: Ts t 220°C max / 4,5mm Ø G (B) Value in Ohm at 0°C P: Pt100 DIN-IEC (C) Element N° and limits 0: 3 wire single el. Cl. B (1 DIN) 1: 3 wire single el. Cl. A (1/2 DIN) 2: 3 wire single el. 1/3 DIN 3: 4 wire single el. Cl. A (1/2 DIN) 4: 4 wire single el. 1/3 DIN 6: 6 wire dual el. CI. B (1 DIN) Ø 4,5 only 7: 6 wire dual el. CI A (1/2 DIN) Ø 4,5 only 8: 6 wire dual el. 1/3 DIN Ø 4,5 only (D) Type of RTD 0: Ceramic 750°C max (E) Sheath material B: AISI 316 (F) Sheath LG mm 0080: 80 mm 0100: 100 mm 0150: 150 mm .... 0450: 450 mm 0500: 500 mm (G) Type of thread S: none A: M6 x 1 - L10 CH-10 ((pour ø2 et ø3) B: M8 x 1.25 - L10 CH - 14 D: M10 x 1.5 - L13 CH - 14 ET: 1/8" Gas - L12 CH - 14 F: 1/4" Gas - L13 CH - 17 M: 1/8" NPT - L10 CH - 14 N: 1/4" NPT - L13 CH - 17 (H) Extension LE 00: none 02: 20 mm 03: 30 mm 05: 50 mm 08: 80 mm (I) Lc wire length 05: 0,5 m 10: 1,0 m ..... 45: 4,5 m 50: 5,0 m 00: 10,0 m (K) Type of termination P: Terminals ø 1.4 - 1.8 max S: Insul. and tinned leads F: Faston 6.35 D: Miniature plug G: Standard plug J: Cylindrical plug ø 17 R: Male ø 12 cylindric plug |
| Weight | 0.1 |
Please contact us to request a price quote for Ascon - RP5A30P00B0050S0010P, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
