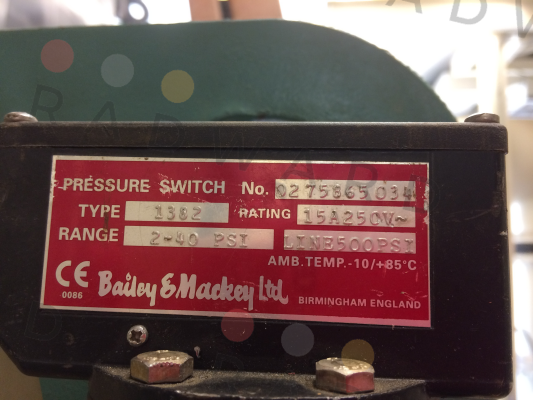

Bailey & Mackey - Type 1382

Manufacturer Bailey & Mackey
Part Number Type 1382
Inner Code 525153
Description differential pressure switch
Technical specification
Replacement unit type 1382 for serial number 06 92328 002
Type 1382 Differential Pressure Switch

Range: 0.07 to 1 bar. Originally set @ 0.1 bar rising
Process Connection: 1/4” BSP female, parallel
Wetted parts: brass chambers with a beryllium copper diaphragm
Seal: Nitrile
Switch housing ingress protected to IP65
Electrical Entry: PG 1.5 conduit thread.
SPDT microswitch
Max line pressure 34 bar
CE marked


Weight 2.5

Please contact us to request a price quote for Bailey & Mackey - Type 1382, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.


WE SELL ONLY NEW AND ORIGINAL PRODUCTS!

Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.

Where can I buy Type 1382 by Bailey & Mackey in United Kingdom?

You can purchase Type 1382 by Bailey & Mackey from RADWARD LTD. We serve customers across United Kingdom, offering competitive prices and reliable service.

What is the price of the Type 1382?

For customized pricing and availability, please fill out our contact form or give us a call. We are dedicated to providing solutions that align with your specific requirements.

Who is the official distributor or seller of Bailey & Mackey in United Kingdom?

While we are not the official distributor or seller of Bailey & Mackey in United Kingdom, we source our products from reliable channels and offer you original Bailey & Mackey equipment at competitive prices.

How can I access Type 1382 catalogs, user manuals, technical documents, and PDFs?

You can access catalogs, user manuals, and technical documents for Type 1382 on our website. Visit our resources section or contact us directly for specific documents.

Do you provide technical support for Type 1382?

While we do not offer direct technical support, we can assist you in contacting the manufacturer to ensure you receive the support you need.

Bailey & Mackey-Type 1382 price
slider
slider
4 / 5
★ ★ ★ ★ ★
(15)
Comments

More products of Bailey & Mackey

  • 11 A8479 009

    Type 14HT Pressure Switch Range: 5 to 60 bar Factory set point: 45 bar falling General Tolerance: +/- 2.75 bar from -20 to +50 degrees C

  • 11 A9275 036

    Type 1381 Pressure Switch

  • 1381P

    Pressure Switch

  • 1381QR

    Pressure Switch

  • 1381QR

    Pressure Switch (0588536062) Manual Reset Rising Pressure Range: 2 to 40 bar Set @ 2 bar rising pressure Overload Protected to 70 bar Process connection: 1/2"NPT Male x 1/4"NPT female Wetted parts: brass connection with Be Cu diaphragm and Nitrile Seal Fitted with Mounting Bracket Fitted with 4K7 OHM Resistor / Shorting Link Complete with 1m of 4 core cable

  • 1381QR

    (Pressure Switch Manual Reset Rising Pressure Range: 2 to 40 bar Set @ 2 bar rising pressure Overload Protected to 70 bar Process connection: 1/2"NPT Male x 1/4"NPT female Wetted parts: brass connection with Be Cu diaphragm and Nitrile Seal Fitted with Mounting Bracket)

  • 16D2547 002

    Differential Pressure Switch

  • S248CK13N70HKA

    DIFFERENTIAL PRESSURE SWITCH range 2-40 PSI with 1/4" Process Connections and 1/2" NPT Conduit connection with a mounting bracket

  • 1382V

    Differential Pressure Switch

  • 138LRQ

    Pressure Switch Range: 2to 40 bar (Set at2bar Rising and marked on nameplate) Manual Reset for Rising Pressure Overload protection to 250 bar Process connection: ll2" NPT Male x ll4" NPT Female, Brass with a Beryllium Copper diaphragm Seal: Nitrile 'O' ring. Switch housing ingress protection to IP65. SPDT microswitch, suitable for 250V ac l0A and fitted with a 4K7 ohm resistor and shorting link Electrical entry: Fitted lm cable, 4 core and gland As Drg 1381RQ13 Mounting bracket fitted. CE marked

  • 1392P

    Type 1392P Visual Setting Differential Pressure Switch Range: 0.2 to 4 bar Process Connection: 1/4” BSP female, parallel

  • Type 1392P

    Visual Setting Differential Pressure Switch

  • 1392P RANGE:0,1-1BAR

    pressure switch

  • 207 Q (NOT OFFERED REPLACED BY 2381Q)

    Pressure Switch 5 A. 250 V. 207 Q, Rated Current: 5Amp, Ac Nominal Voltage:250Volt,Range: 5-160 PSI,P / Reducer Pve-16D , Serial 69153, 1/2 Npt

  • 207CEQ

    Range: -1 to BAR

  • 3312

    Differential Pressure SwitchRange:

  • 3911/2

    Pressure Switch Range: 1 to 3 bar (Set at 1.4 bar Rising) Process connection: 7/8” BSP Male, 316 Stainless Steel flow through base, with a PTFE/Nitrile bonded diaphragm. Switch Cover Plastic coated

  • 5381

    SWITCH,PRESSURE,ATEX,PRESSURE RANGE 3-14 BAR,DELUGE SYSTEM ZONE #1 TO ZONE #8,SERIES 5000,TYPE 5381,NOTIFICATION NUMBER11044079

  • 92561 016

    Type 1381Q Pressure Switch as serial number 9256{ 0{6 Range: -1 to +1 Overload Protected to 28 bar Process Connection:112" BSP male, parallel Wetted parts: brass connection with a beryllium copper diaphragm Seal: Nitrile Switch housing ingress protected to lP65 SPDT microswitch rated 10A @ 250V ac CE marked Stock Code: 52A23

  • D036 - 316

    STLESS STEEL PROTECTION DISC

  • D050P

    PTFE FLAT SEALING GASKET

  • D121

    BERYLLIUM COPPER DIAPHRAGM

  • DIFF.PRESSURE SWITCH 1382

    Pressure range 0,2 - 4bar .

  • K040NUL- M

    SWITCH ASSEMBLED IN BRACKET

  • MODEL 1382

    water flow switch, #0380323003, type SPDT, model 1382, rating 15 amp, 250V range 2-40 psi.

  • REPLACEMENT UNIT FOR PRESSURE SWITCH SERIAL NUMBER 04 86394 003

    (Type 14P Pressure Switch Range: 0.4 to 4 bar Process Connection: 1/8” BSP male, taper Wetted parts: brass connection with a beryllium copper diaphragm Seal: Nitrile Electrical Connection: 4-pin plug & socket SPDT microswitch)
