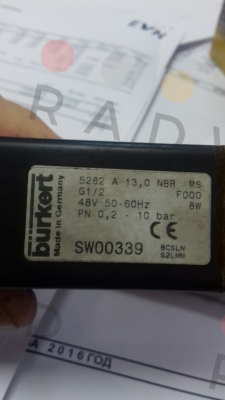

Burkert - 00202680 (Type 5282)

Manufacturer Burkert
Part Number 00202680 (Type 5282)
Inner Code 1838277
Description 2/2-Wege-Magnetventil
Technical specification Typ 5282 5282 Generation 00 Keine Angabe Wirkungsweise A 2/2-Wege; In Ruhestellung geschlossen Nennweite 32,0 32 mm Dichtwerkstoff BB NBR Werkstoff MS Messing Leitungsanschluss GM87 G 1 1/4 Muffe Spulengröße 0 Typbezogen festgelegt Spannung 230 230 Volt Frequenz 56 50-60 Hz Leistungsaufnahme 08 8 Watt Besonderheit MT50 Vorsteuerung WWC bzw. WWD Druckbereich 0,2 - 16 bar Gewicht: kg/St 2,447
Weight 2.447

Please contact us to request a price quote for Burkert - 00202680 (Type 5282) , or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.


WE SELL ONLY NEW AND ORIGINAL PRODUCTS!

Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.

Where can I buy 00202680 (Type 5282) by Burkert in United Kingdom?

You can purchase 00202680 (Type 5282) by Burkert from RADWARD LTD. We serve customers across United Kingdom, offering competitive prices and reliable service.

What is the price of the 00202680 (Type 5282) ?

For customized pricing and availability, please fill out our contact form or give us a call. We are dedicated to providing solutions that align with your specific requirements.

Who is the official distributor or seller of Burkert in United Kingdom?

While we are not the official distributor or seller of Burkert in United Kingdom, we source our products from reliable channels and offer you original Burkert equipment at competitive prices.

How can I access 00202680 (Type 5282) catalogs, user manuals, technical documents, and PDFs?

You can access catalogs, user manuals, and technical documents for 00202680 (Type 5282) on our website. Visit our resources section or contact us directly for specific documents.

Do you provide technical support for 00202680 (Type 5282) ?

While we do not offer direct technical support, we can assist you in contacting the manufacturer to ensure you receive the support you need.

Burkert-00202680 (Type 5282) price
4 / 5
★ ★ ★ ★ ★
(6)
Comments

More products of Burkert

  • 00088897

    4/2-way pneumatic valve Type 0470 0470 Action of G 4/2-way; In rest position, pressure port 1 with Output 2 is connected; Outlet 4 vented Nominal width of 04.0 mm 4 Seal material NBR BB Line connection 1 GM81 G 1/8 sleeve Line connection 2 FS05 flange laterally Namurflansch Voltage 024 volts 24 Frequency UC direct and alternating current (AC / DC) Power consumption 02 watts 2 JF01 standard cable head Pressure range 2 - 10 bar Weight: kg / pc 0.158

  • 0010 00565118 TYPE 8071

    Succession device or new item number Oval gear flow sensor Type 8071 8071 GM81 line terminal G 1/8 sleeve Material VB VA (1.4401) Seal material FFKM CC Sensor A2 stainless steel oval wheels with magnets Measuring range Y 2-100 l / h (0.53 to 26.4 GPH) Measurement function F1 Structure W housing, IP54, BDG voltage from 4.5 to 24 volts Frequency DC DC Output 4 open collector NPN Pressure range 0 - 55 bar Weight: kg / pc 1.040

  • 00120668 TYP 0470

    4/2-way pneumatic valve Type 0470 0470 Action of G 4/2-way; In rest position, pressure port 1 with Output 2 is connected; Outlet 4 vented Nominal width of 04.0 mm 4 Seal material NBR BB Line connection 1 FM01 flange Burkert module (type 0470) Cable Connection 2 TA22 hose connector tubing diameters 6mm Voltage 024 volts 24 Frequency UC direct and alternating current (AC / DC) Power consumption 02 watts 2 AF07 with duct connection downwards AF08 with integrated check valve JF48 1057-SA Pressure range 2 - 10 bar Weight: kg / pc 0.143

  • 00121520 2/2-WEGE-MAGNETVENTIL F. AGGRESS. MEDIEN - 1 - 6 BAR

    Type 0124 0124 Function A 2/2-way; Normally closed Nominal width of 03.0 mm 3 Seal material FKM FF Material PD PVDF (polyvinylidene fluoride) line connection GM82 G 1/4 sleeve Voltage 230 230 Volt Frequency 50 50 Hz Power consumption 08 watts 8 Special JF01 standard cable head NA01 analysis version + vacuum design by FST DIS 1000020797 (WN 06 3 50054) Pressure range - 1 - 6 bar

  • 00122660

    5/2-Wege-Pneumatikventil

  • 00123053 TYP 0330

    3/2-way solenoid valve; direct acting Action of D 3/2-way; In the rest position the output B pressurized Nominal width of 03.0 mm 3 Seal material NBR BB MS brass material GM82 line terminal G 1/4 sleeve Voltage 024 volts 24 Frequency 50 50 Hz Power consumption 08 watts 8 JF76 Connector 1051 to 2303 -...- .. NK27 cable head grown Pressure range 0 - 10 bar Weight: kg / pc 0.470

  • p/n: 00124144, Type: 0255

    2/2-way solenoid valve; direct-acting

  • p/n: 125301, Type: 6013

    2/2-way solenoid valve, direct action

  • 00125314 2/2-WEGE-MAGNETVENTIL, DIREKTWIRKEND TYP 6013

    G-1/4 -F-000 220V - 50Hz -8W PN 0-1,5 Bar ID N 044309P I PUG

  • 00125329 3/2-WEGE-MAGNETVENTIL, DIREKTWIRKEND TYP 6014

    Function C 3/2-way; relieved in the rest position the output A Nominal size 01,5 1,5 mm Seal material FKM FF MS brass material GM81 line terminal G 1/8 sleeve Coil size 5 32 mm Voltage 024 volts 24 Frequency DC DC Power consumption 08 watts 8 Pressure range 0 - 16 bar Pressure max / gas 16 bar Weight: kg / pc 0.332

  • P/N: 00125333, Type: 6014

    3/2-way solenoid valve

  • 00125336 3/2-WEGE-MAGNETVENTIL, DIREKTWIRKEND TYP 6014

    Function C 3/2-way; relieved in the rest position the output A Nominal diameter 02.0 mm 2 Seal material FKM FF MS brass material GM81 line terminal G 1/8 sleeve Coil size 5 32 mm Voltage 230 230 Volt Frequency 50 50 Hz Power consumption 08 watts 8 Pressure range 0 - 10 bar Pressure max / gas 10 bar

  • 125337

    Ventil

  • 125341

    3/2 Way Direct Acting Solenoid ValveType 6014 6014

  • 00126078

    2/2-way solenoid valve, direct acting Type 6013 6013 Function A 2/2-way; Normally closed Nominal width of 03.0 mm 3 Seal material FKM FF Material Stainless steel VA GM81 line terminal G 1/8 sleeve Coil size 5 32 mm Voltage 024 volts 24 Frequency DC DC Power consumption 08 watts 8 Pressure range 0 - 6 bar Pressure max / gas 6 bar

  • Typ 6013

    2/2-Wege-Magnetventil, direktwirkend

  • 00126091 TYP 6013

    2/2-way solenoid valve, direct acting Type 6013 6013 Function A 2/2-way; Normally closed Nominal width of 03.0 mm 3 Seal material FKM FF MS brass material GM81 line terminal G 1/8 sleeve Coil size 5 32 mm Voltage 024 volts 24 Frequency DC DC Power consumption 08 watts 8 Pressure range 0 - 6 bar Pressure max / gas 6 bar Weight: kg / pc 0.331

  • 00126140 3/2-WEGE-MAGNETVENTIL, DIREKTWIRKEND TYP 6014

    Function C 3/2-way; relieved in the rest position the output A Nominal diameter 02.0 mm 2 Seal material FKM FF MS brass material GM82 line terminal G 1/4 sleeve Coil size 5 32 mm Voltage 230 230 Volt Frequency 50 50 Hz Power consumption 08 watts 8 Pressure range 0 - 10 bar Pressure max / gas 10 bar

  • 00126142

    (3/2-way solenoid valve, direct-acting Type 6014 6014 Function C 3/2-way; relieved in the rest position the output A Nominal diameter 02.5 2.5 mm Seal material FKM FF MS brass material GM82 line terminal G 1/4 sleeve Coil size 5 32 mm Voltage 024 volts 24 Frequency DC DC Power consumption 08 watts 8 Pressure range 0 - 6 bar Pressure max / gas 6 bar Weight: kg / pc 0.435)

  • 00126148 3/2-WEGE-MAGNETVENTIL, DIREKTWIRKEND

    valve,6014 C 2,0 FKM, G1/4, PN10 BAR, 110VAC,50HZ,8W

  • 00126155 (Typ 6014)

    3/2-Wege-Magnetventil, direktwirkend

  • 00126209

    3/2-way solenoid valve, direct acting

  • 00126231

    3/2-way solenoid valve, direct-acting Type 6014 6014 Action of T 3/2-way; Universal Einset 3/2-way; Universal used; nominal diameter 01.5 1.5 mm; FF sealing material FKM Material VA stainless steel; line connection GM81 G 1/8 sleeve; coil size 5 32 mm; Voltage 230 230 V; frequency 50 50 Hz; power 08 8 watts; pressure range 0 - 7 bar, pressure max / gas 7 bar, weight: kg / St 0.317

  • 00126410 3/2-WEGE-MAGNETVENTIL, DIREKTWIRKEND TYP 6014

    Function C 3/2-way; relieved in the rest position the output A Nominal diameter 02.0 mm 2 Seal material FKM FF MS brass material Line connection FB01 flange: Bürkert KL-NR.001-01-06 (32x32) Coil size 5 32 mm Voltage 230 230 Volt Frequency 50 50 Hz Power consumption 05 watts 5 Special HA17 manual override, PA rotary manual control, rotary lever Pressure range 0 - 6 bar Pressure max / gas 6 bar

  • 00131421

    3/2-and 5/2-way pneumatic valve 32mm Type 6519 6519 Mode of action W Optional 5 / 2- or 3/2-way Nominal width of 6 mm 06,0 Line connection 1 GM82 G 1/4 sleeve Line connection 2 FS05 flange laterally Namurflansch Actuation B electro / pneumatic spring + mech. feather Coil size 5 32 mm Voltage 024 volts 24 Frequency DC DC Power consumption 02 watts 2 Pressure range 2 - 8 bar Weight: kg / pc 0.485

  • 00132395

    3/2-way pneumatic valve 10 mmTyp 6510 6510 function C 3/2-way; In the rest position the output A relieved nominal diameter 02.5 2.5 mmLeitungsanschluss 1 FM08 flange interface module / valve for Typ6510Leitungsanschluss 2 0000 not vorhandenBetätigungsart B electro / pneumatic spring + mech. Spring coil size 0 Type Based fixed voltage 024 24 Volt DC frequency DC power input 01 1 WattHA01 Without HandbetätigungJF80 rectangular connector 5.08 mm 2 pole pressure range from 2.5 to 7 bar

  • 00132395 3/2-WEGE-PNEUMATIKVENTIL 10 MM

    Type 6510 6510 Function C 3/2-way; relieved in the rest position the output A Nominal diameter 02.5 2.5 mm Line connection 1 FM08 flange interface module / valve type 6510 Cable Connection 2 0000 No Actuation B electro / pneumatic spring + mech. feather Coil size 0 Type Based specified Voltage 024 volts 24 Frequency DC DC Power consumption 01 watts 1 HA01 Without manual override JF80 rectangular connector, 5.08 mm, 2 poles Pressure range 2,5 - 7 Bar

  • 00132465,5/2-WEGE-PNEUMATIKVENTIL 32MM, TYP6519

    Function H 5/2-way; In the rest position output 2 pressurized Nominal diameter 08,0 8 mm Line connection 1 GM82 G 1/4 sleeve GM82 line connection 2 G 1/4 sleeve Actuation B electro / pneumatic spring + mech. feather Coil size 5 32 mm Voltage 024 volts 24 Frequency DC DC Power consumption 02 watts 2 Pressure range 2 - 8 bar Weight: kg / pc 0.458
