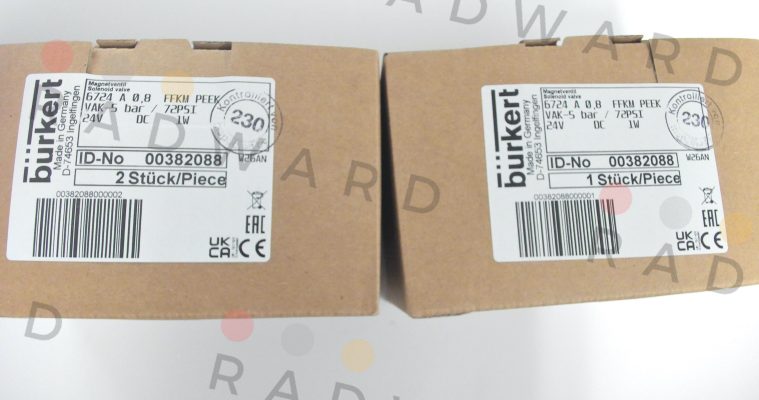

Burkert - 6724-A00,8CCPK-DA44-024/DC-01-00-12 / 00382088

Manufacturer Burkert
Part Number 6724-A00,8CCPK-DA44-024/DC-01-00-12 / 00382088
Inner Code 4627376
Description solenoid
Custom Code 84818079
Technical specification type 6724 6724 Mode of action A 2/2-way; closed in rest position Nominal width 00.8 0.8 mm sealing material CC FFKM Material PK PEEK line connector DA44 barb hose inner diameter 2 mm (5/64 inch) voltage 024 24 volts DC DC frequency power consumption 01 1 watts 00 standard circuitry or no wiring Electrical connection 12 plug flags pressure min -1 bar pressure max 5 bar KV 0.01 m3/h QNN 10.70 l/min Medium temp. min 15 °C Medium temp. max 50 °C Ambient temp. min 15 °C Ambient temp. max 50 °C
Weight 0.022

Please contact us to request a price quote for Burkert - 6724-A00,8CCPK-DA44-024/DC-01-00-12 / 00382088, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.


WE SELL ONLY NEW AND ORIGINAL PRODUCTS!

Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.

Where can I buy 6724-A00,8CCPK-DA44-024/DC-01-00-12 / 00382088 by Burkert in United Kingdom?

You can purchase 6724-A00,8CCPK-DA44-024/DC-01-00-12 / 00382088 by Burkert from RADWARD LTD. We serve customers across United Kingdom, offering competitive prices and reliable service.

What is the price of the 6724-A00,8CCPK-DA44-024/DC-01-00-12 / 00382088?

For customized pricing and availability, please fill out our contact form or give us a call. We are dedicated to providing solutions that align with your specific requirements.

Who is the official distributor or seller of Burkert in United Kingdom?

While we are not the official distributor or seller of Burkert in United Kingdom, we source our products from reliable channels and offer you original Burkert equipment at competitive prices.

How can I access 6724-A00,8CCPK-DA44-024/DC-01-00-12 / 00382088 catalogs, user manuals, technical documents, and PDFs?

You can access catalogs, user manuals, and technical documents for 6724-A00,8CCPK-DA44-024/DC-01-00-12 / 00382088 on our website. Visit our resources section or contact us directly for specific documents.

Do you provide technical support for 6724-A00,8CCPK-DA44-024/DC-01-00-12 / 00382088?

While we do not offer direct technical support, we can assist you in contacting the manufacturer to ensure you receive the support you need.

Burkert-6724-A00,8CCPK-DA44-024/DC-01-00-12 / 00382088 price
4 / 5
★ ★ ★ ★ ★
(3)
Comments

More products of Burkert

  • 00178896

    2/2-way angle globe valve

  • 00179765 SPULE 230/50/08

    Type AC10 AC10 Interface. Valve / coil U3 Zentralverschraubt, core diameter 10.6 mm, universal Coil size 5 32 mm Coil winding 19ab

  • 00179916

    024/DC/04 Typ AC07 AC07 U2 CENTRAL SCREW, CORE DIAMETER 7 MM UNIVERSAL 20 MM 21AA

  • 00179938 5/2-WEGE-PNEUMATIKVENTIL 10 MM 6525

    Mode of operation H 5/2-way; At rest, output 2 pressurized Nominal width 04,0 4 mm Cable connection 1 FM14 flange pattern type 6525 Line connection 2 0000 not available Operating mode Z electropneumatic based on type 6144 Set spool size 0 type-specific voltage 024 24 volts Frequency BA battery power Power consumption AA 0.8 Watt JB17 Right PIN positive pole JF80 Rectangular Plug Connector 5.08 mm, 2 Pin Pressure range 2.5 - 10 bar Weight: kg/st 0.025

  • 00179938 5/2-WEGE-PNEUMATIKVENTIL 10 MM 6525

    Mode of operation H 5/2-way; At rest, output 2 pressurized Nominal width 04,0 4 mm Cable connection 1 FM14 flange pattern type 6525 Line connection 2 0000 not available Operating mode Z electropneumatic based on type 6144 Set spool size 0 type-specific voltage 024 24 volts Frequency BA battery power Power consumption AA 0.8 Watt JB17 Right PIN positive pole JF80 Rectangular Plug Connector 5.08 mm, 2 Pin Pressure range 2.5 - 10 bar

  • 00183939 TYP 2000

    2/2-way piston control angle seat valve Type 2000 2000 Control function A closed with spring force Paths / positions 2 2 way / 2-position Nominal diameter 15.0 mm 15 Seal material PTFE EE Material RG gunmetal GM84 line terminal G 1/2 sleeve Drive Version B PA drive, MS-threaded socket on Control air connection Actuator size D DM 50 mm AF12 Short housing MC13 flow direction above seat MS74 mounted V-ANTR Pressure range 0 - 16 bar Weight: kg / pc 0.732

  • 00184960

    2/2-way solenoid valve; servo-controlled Type 5282 5282 Generation 00 Unspecified Action of B 2/2-way; Normally open Nominal diameter 13.0 mm 13 Sealing material BB NBR; Material MS brass; line connection GM84 G 1/2 sleeve; coil size set 0 Type Relative; Voltage 230 230 V; frequency 56 50-60 Hz; power 08 8 watts; special MT50 feedforward WWC or WWD; Pressure Range 0.2 - 16 bar, weight: kg / St 0.920

  • 00186578

    (2/2-way piston control angle seat valve Type 2000 2000 Control function A closed with spring force Paths / positions 2 2 way / 2-position Nominal diameter 20.0 mm 20 Seal material NBR BB Material RG gunmetal GM85 line connection G 3/4 sleeve Drive Version B PA drive, MS-threaded socket on Control air connection Actuator size D DM 50 mm AF12 Short housing MC13 flow direction above seat Pressure range 0 - 16 bar Weight: kg / pc 0.940 Substitution for Id.-Nr. 166257)

  • 00186578

    Follow-up to 166257 1: 1 2/2-way piston control angle seat valve Type 2000 2000 Control function A closed with spring force Paths / positions 2 2 way / 2-position Nominal diameter 20.0 mm 20 Seal material NBR BB Material RG gunmetal GM85 line connection G 3/4 sleeve Drive Version B PA drive, MS-threaded socket on Control air connection Actuator size D DM 50 mm Special AF12 Short housing MC13 flow direction above seat Pressure range 0 - 16 bar Weight: kg / pc 0.940

  • 0018-6702-000

    VALVE:SOLENOID,3/4 IN PIPE,DN 13 ORIFICE VALVE,SOLENOID: PIPE SIZE: 3/4 IN; ORIFICE DIAMETER: DN 13; ELECTRICAL RATING: 24 VDC, 60 HZ, 9 W; CONFIGURATION: 2 WAY; CONNECTION: THREADED (TUBE NOZZLE); OPERATION: ELECTRIC; PRESSURE RATING: 0 TO 16 BAR; ENCLOSURE: IP 65; BODY MATERIAL: BRASS; ADDITIONAL DATA: USED FOR WASHING WATER SYSTEM, WESTFALI A OIL SEPERATOR.

  • 00200192

    solenoid valve(0330 A 3.0 FKM G1/4)

  • p/n: 201010; Type: KT01

    5/2 W SOLENOID VALVE

  • 00206594 PROZESSREGLER SIDE NAMUR TYP 8793

    (Pneumatic function D3 double and single acting QNn = 100 l / min Proximity switch 00 Without Flange FA06 interface SideControl 879x Namur flange Supply voltage E 24V DC F control 0-10V, 0-5V, 4-20mA, 0-20mA set Electr. Connection KD grommet Fluid connection G 1/4 GI Operation / Config. T keyboard and display internally Inputs / outputs F 1 binary + 1 analog output + 2 Binary Without additional function 0 Communication 0 Without PK02 usCSAc approved control)

  • 00206611

    Digital electro-pneumatic positioner: Positioner SideControlc

  • 00206611 POSITIONER SIDE NAMUR TYP 8792

    SIDE CONTROL POSITIONER PARALLEL ACTING

  • 00214362

    a-1.6 3bar 12 volt,2-way valve

  • 00214398 ERSATZTEILSATZ DN 12 BB WW B TYP SET4

    (Type 2 0400 0400 Action of B 2/2-way; Normally open nominal diameter 12.0 mm 12 Seal material NBR BB Material 00 without housing or not specified Coil size 0 Type Based specified Current Type E DC Power consumption 00 without coil ID number 00214398 Special Z303)

  • 00216019

    Valve island 24 times 8644 6524 Type 8644 8644 Pitch 11 11 mm Num. mono rod. 3/2 valves 24 24 valves Num. monostab.4 + 5/2-valve 00 No Number Bistab. 5/2 valves 00 No Number Bistab. 5/3 valves 00 No Num. not bel. Ventilpl. 00 No Electr. Control 000 without electric. control Manufacturer Siemens SI Number of digital inputs 00 No Input Number of analog inputs 00 no Number of digital outputs 00 No Output Number Analog Outputs00 no Line connection 1 GM82 G 1/4 sleeve Cable Connection 2 TA22 hose connector tubing diameters 6mm Approval 00 NO Protection IP20 20 Pneumatic pressure gauge 1 with pressure gauge Pneumat. 1 particularity with non-return valves Pneumat. Special X 2 x contain 3/2-way, Ve 1 Electr. Special 0 None Accessories 0 Without Weight: kg / pc 1.618

  • 00221602

    2/2-way solenoid valve

  • p/n: 00221606, Type: 6213

    2/2-way-solenoid valve, servo coupled

  • 00221674 NEW PART # FOR 93908133

    Succession device or new item number: positively controlled 2/2-way solenoid valve, Type 6213 6213 generation EV Function A 2/2-way; Normally closed Nominal diameter 10.0 mm 10 Seal material NBR BB MS brass material GM82 line terminal G 1/4 sleeve Coil size 6 40 mm Voltage 024 volts 24 Frequency DC DC Power 10 10 Watts Pressure range 0 - 10 bar Weight: kg / pc 0.444

  • 00221734

    positively controlled 2/2-way solenoid valve, type 6213

  • p/n: 00221844, Type:

    2/2-way solenoid valve; servo-controlled

  • 00221846 2/2-WEGE-MAGNETVENTIL; SERVOGESTEUERT TYP 6281

    (Generation EV Function A 2/2-way; Normally closed nominal diameter 13.0 mm 13 Seal material NBR BB MS brass material GM84 line terminal G 1/2 sleeve Coil size 5 32 mm Voltage 230 230 Volt Frequency 56 Hz 50-60 Power consumption 08 watts 8 Pressure range 0,2 - 16 bar Weight: kg / pc 0.521)

  • 00221926 Typ 6281

    2/2-way solenoid valve; servo-controlled Type 6281 6281 generation EV Action of B 2/2-way; Normally open Nominal diameter 13.0 mm 13 Seal material NBR BB MS brass material GM84 line terminal G 1/2 sleeve Coil size 5 32 mm Voltage 024 volts 24 Frequency DC DC Power consumption 08 watts 8 Special NA38 coil for higher temperatures Pressure range 0,2 - 16 bar Weight: kg / pc 0,550

  • 00451904

    3/2-way solenoid valve; direct acting

  • 00225435

    2/2-way solenoid valve; servo-controlled Type 0290 0290 Function A 2/2-way; Normally closed Nominal diameter 12.0 mm 12 Seal material FKM FF MS brass material GM84 line terminal G 1/2 sleeve Voltage 230 230 Volt Frequency 50 50 Hz Power 10 10 Watts Special JF01 standard cable head MA02 Electrical connection via valve outlet MT05 Direct coupling NL02 suitable for applications with oxygen (Non-metallic wetted materials are BAM-tested), Blue Label, DIS 1000020797 Pressure range 0 - 16 bar
