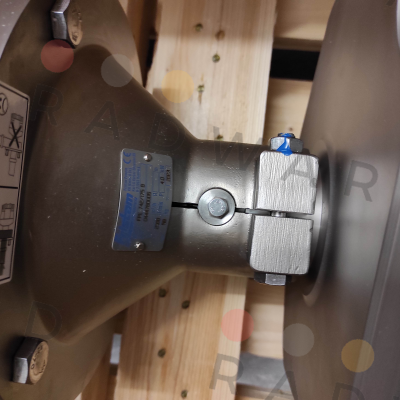

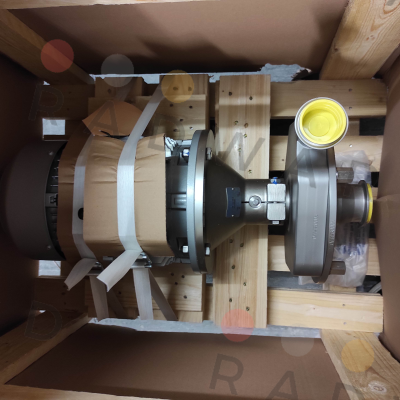

Fristam - FPE 742/175 B
| Manufacturer | Fristam |
|---|---|
| Part Number | FPE 742/175 B |
| Inner Code | 4787073 |
| Description | Pump |
| Custom Code | 84137051 |
| Technical specification | pump with motor base Pump material: 1.4404 (316L) Shaft seal: 9.468A (2V21V2) SIC/SIC/FKM Elastomers: FKM with FDA certificate Connector Type: Tri-Clamp Suction side: 2.5" Print side: 2" Impeller diameter: 175 mm Motor: 4.0kW, n=2900 rpm 50 Hz, ISO class ISO: F Voltage 400/690V IP 55 Funding dates: Product = unknown Certificates/tests: Documentation exclusively in accordance with Fristam standards, if not otherwise confirmed. - Factory certificate “2.1" - FDA certificate/EG1935/2004 - standard measurement sheet In general: - Alexit No. 91 pure silver finish - Areas in contact with the product for --> housing, cover, impeller, impeller nut <= RA0.8μm Electropolished impeller engine: - IEC112M motor size - Terminal box location: above - with cold conductor temperature sensor - according to efficiency class IE3 Pump head: - with housing drain clamp (Ø12.70x1.65) - 90° front bend looking at the pump cover Shaft seal: - GLRD: simple-acting other agreements: Same as SN 0444 74 0303 |
| Weight | 92 |
Please contact us to request a price quote for Fristam - FPE 742/175 B, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
