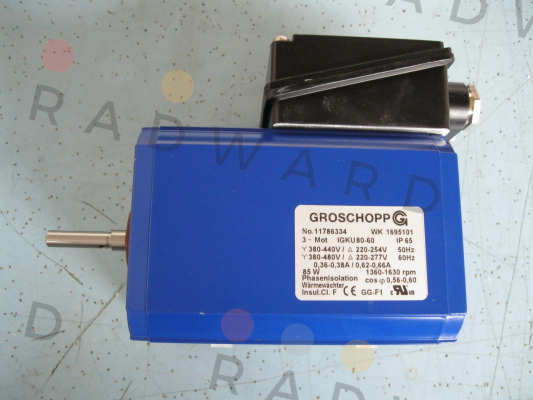

Groschopp - IGKU 80-60
| Manufacturer | Groschopp |
|---|---|
| Part Number | IGKU 80-60 |
| Inner Code | 4247439 |
| Description | Gear Motor |
| Technical specification | Item number: 502821 AC ASYNCHRONOUS GEAR MOTOR Type: IGKU 80-60, 380-440/220-254 V, 50 Hz 380-480/220-277 V, 60 Hz 0.36-0.38/0.62-0.66 A 1360-1630 U, 85 W, B14, IP65, Engine wound according to WK 1695101, Left/right rotation according to wiring diagram S61-0701-30, motor with phase insulation, Engine UR/UL Conform, Motor with terminal box AK2 and 6-pin clipboard, circuit diagram in the terminal box, Motor with heat switch 140°C as NC contact connections on WAGO terminal, Mounted with: SINGLE WORM GEAR UNIT Type: VE31-K-R-31 i= 75:1 n2= 18.1 rpm, M2= 12.1 Nm Operating factor fB= 0.41 small flange: Ø 80 mm, flange and shaft right Gear Shaft: Ø 10 h6 x 29 mm long with groove and key A3x3x20 mm according to DIN 6885 sheet1 Paint according to RAL 5002 - ultramarine blue Lubricant: Centoplex H/0 Fat capacity: 45+5 g Terminal box position: 44 (top) Gearbox installation: 1 Design and dimensions according to Drawing No: 2013-12-002333 |
| Weight | 4.55 |
Please contact us to request a price quote for Groschopp - IGKU 80-60, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
