Gutekunst - D-206A
| Manufacturer | Gutekunst |
|---|---|
| Part Number | D-206A |
| Inner Code | 244894 |

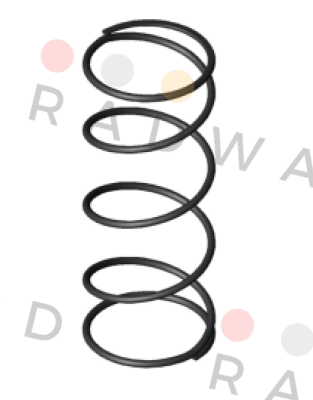

| Description | Compression springs |
| Technical specification | Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 1.4 mm Wire diameter Di mm Inner coil diameter D 22.6 mm Mean coil diameter De 24 mm Outer coil diameter Dd 20.5 mm maximum diameter of mandrel Dh 25.8 mm minimum diameter of bush L0 60.9 mm unstressed spring length Lk mm buckling length Fn 49.204 N maximum force in static use Ln 10.11 mm Minimum length in static use sn 50.79 mm Maximum spring deflection in static use Fndyn 45.19 N maximum force in dynamic use Lndyn 14.25 mm Minimum length in dynamic use shdyn 16.81 mm Maximum stroke in dynamic use S 17 mm pitch of spring n 3.5 pc. number of active coils nt pc. total number of coils R 0.969 N/mm Spring rate Weight 4.7517 g weight of one spring Fntol 3.67 N (+/-) tolerance of maximum force in static use Fndtol 3.65 N (+/-) tolerance of maximum dynamic force Detol 0.5 mm (+/-) tolerances of outer coil diameter L0tol 3.02 mm (+/-) tolerance of unstressed spring length Price group F - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force |
| Weight | 0.005 |
Please contact us to request a price quote for Gutekunst - D-206A, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
