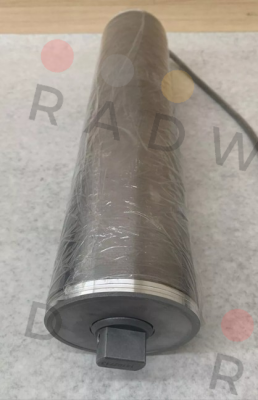

Interroll - MI-DL0113 DL1131-BAA0AD01TKSC-492mm
| Manufacturer | Interroll |
|---|---|
| Part Number | MI-DL0113 DL1131-BAA0AD01TKSC-492mm |
| Inner Code | 4811236 |
| Technical specification | Product Name DL 0113 Asynchronous 1-Phase Certification cRUus UL Certified IP Rating 66 Shell Length (SL) 18.504 " Face Width (FW) 19.37 " Between Frames (EL/LW/BF) 19.61 " Overall Length (AGL) 21.18 " Poles 4 Power 0.15 hp Torque [Nm] 30.4 Belt Pull Force 536 N Gear Ratio (i) 44.09 Velocity at Frequency 1 34 fpm Frequency 1 50 Hz External Wiring Diagram E10 High Voltage 230 V Current, High Voltage 1.04 A Shell Material Steel: St37-2 / AISI 1015 Shell Diameter (A) 4.46 " Shell Diameter (B) 4.42 " Shell Shape Crowned (Standard) Housing A Material ALU: EN-AC44300 / AL230 Housing B Material ALU: EN-AC44300 / AL230 Shaftcap A Material Aluminium Shaftcap B Material Aluminium Shaftcap A Diameter 1.38 " Shaftcap B Diameter 1.38 " Shaftcap A Flat Width 0.83 " Shaftcap B Flat Width 0.83 " Shaftcap A Flat Length 0.79 " Shaftcap B Flat Length 0.79 " Oil Type Mineral Oil Electrical Connection Shaft Cap with Slot Power Cable Length 3.0 m Power Cable Type Non Screened; Non Halogen Free |
| Weight | 10.6 |
Please contact us to request a price quote for Interroll - MI-DL0113 DL1131-BAA0AD01TKSC-492mm, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
Where can I buy MI-DL0113 DL1131-BAA0AD01TKSC-492mm by Interroll in United Kingdom?
You can purchase MI-DL0113 DL1131-BAA0AD01TKSC-492mm by Interroll from RADWARD LTD. We serve customers across United Kingdom, offering competitive prices and reliable service.
What is the price of the MI-DL0113 DL1131-BAA0AD01TKSC-492mm?
For customized pricing and availability, please fill out our contact form or give us a call. We are dedicated to providing solutions that align with your specific requirements.
Who is the official distributor or seller of Interroll in United Kingdom?
While we are not the official distributor or seller of Interroll in United Kingdom, we source our products from reliable channels and offer you original Interroll equipment at competitive prices.
How can I access MI-DL0113 DL1131-BAA0AD01TKSC-492mm catalogs, user manuals, technical documents, and PDFs?
You can access catalogs, user manuals, and technical documents for MI-DL0113 DL1131-BAA0AD01TKSC-492mm on our website. Visit our resources section or contact us directly for specific documents.
Do you provide technical support for MI-DL0113 DL1131-BAA0AD01TKSC-492mm?
While we do not offer direct technical support, we can assist you in contacting the manufacturer to ensure you receive the support you need.
