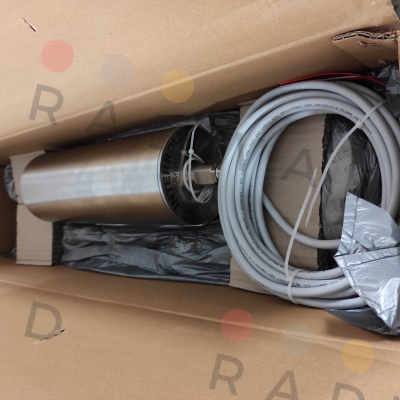

Interroll - DM1133-AAC13B0E8JDJ-307mm
| Manufacturer | Interroll |
|---|---|
| Part Number | DM1133-AAC13B0E8JDJ-307mm |
| Inner Code | 4947277 |
| Technical specification | MI-DM0113 Product name DM 0113 3-phase asynchronous Protection level IP 69K Tube length (SL) 300.0 mm Drum width (FW) 307.0 mm Installation length (EL/LW/BF) 320.0 mm Overall axle length (AGL) 370.0 mm Power 225 W coil number of poles 2 Torque [Nm] 21.1 Band tensile force 371 N Gear ratio (i) 30.00 Transmission Material description Cast iron: GGG-40 Speed at frequency 1 0.55 m/s Frequency 1 50 Hz external connection diagram M34 high voltage 400 V low voltage 230 V Rated current, high voltage 0.56 A rated current, low voltage 0.96 A Speed at frequency 2 0.65 m/s Frequency 2 60 Hz high voltage 2 460 V low voltage 2 230 V Stainless steel pipe material: 1.4301/304 Pipe diameter (A) 113.5 mm Pipe diameter (B) 112.0 mm Convex tube shape (standard) Cover A version Standard cover B version Standard Cover A Material stainless steel: 1.4301/304 Cover B Material stainless steel: 1.4301/304 Shaft A version standard Ø25mm shaft B version standard Ø25mm Shaft A Material stainless steel: 1.4305/303 Shaft B Material stainless steel: 1.4305/303 Wave A key area (F) 20.0 mm Wave B key area (F) 20.0 mm Wave A key face length (C) 25.0 mm Wave B key face length (C) 25.0 mm Oil type synthetic food oil Electrical connection straight screw connection Elek. Connection material stainless steel: 1.4301/304 Power cable length 5.0 m Power cable type shielded; not halogen-free |
| Weight | 15 |
Please contact us to request a price quote for Interroll - DM1133-AAC13B0E8JDJ-307mm, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
Where can I buy DM1133-AAC13B0E8JDJ-307mm by Interroll in United Kingdom?
You can purchase DM1133-AAC13B0E8JDJ-307mm by Interroll from RADWARD LTD. We serve customers across United Kingdom, offering competitive prices and reliable service.
What is the price of the DM1133-AAC13B0E8JDJ-307mm?
For customized pricing and availability, please fill out our contact form or give us a call. We are dedicated to providing solutions that align with your specific requirements.
Who is the official distributor or seller of Interroll in United Kingdom?
While we are not the official distributor or seller of Interroll in United Kingdom, we source our products from reliable channels and offer you original Interroll equipment at competitive prices.
How can I access DM1133-AAC13B0E8JDJ-307mm catalogs, user manuals, technical documents, and PDFs?
You can access catalogs, user manuals, and technical documents for DM1133-AAC13B0E8JDJ-307mm on our website. Visit our resources section or contact us directly for specific documents.
Do you provide technical support for DM1133-AAC13B0E8JDJ-307mm?
While we do not offer direct technical support, we can assist you in contacting the manufacturer to ensure you receive the support you need.
