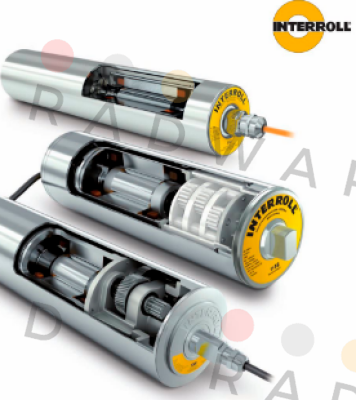

Interroll - MI-DM0138 DM1383-ACL03B0E9UFA-357mm

Manufacturer Interroll
Part Number MI-DM0138 DM1383-ACL03B0E9UFA-357mm
Inner Code 5035363
Technical specification MI-DM0138 DM1383-ACL03B0E9UFA-357mm Net weight: 19.57 kg Product name DM 0138 3-phase asynchronous Protection level IP 69K Tube length (SL) 350.0 mm Drum width (FW) 357.0 mm Installation length (EL/LW/BF) 380.0 mm Total axle length (AGL) 430.0 mm Power 160 W Winding number of poles 4 Torque [Nm] 238.4 Band tensile force 3,311 N Gear ratio (i) 252.00 Transmission Material description Cast iron: GGG-40 Frequency 2 60 Hz high voltage 2 460 V low voltage 2 230 V Steel pipe material: St37-2/AISI 1015 Pipe diameter (A) 144.0 mm Pipe diameter (B) 142.0 mm Convex tube shape (standard) Pipe option type smooth rubber coating Coating Material NBR Rubber Coating Hardness 70 Shore A Coating color white coating process hot vulcanized Cover A version Standard cover B version Standard Cover A Material ALUMINUM: EN-AC43400/AL239 Cover B Material ALUMINUM: EN-AC43400/AL239 Shaft A version replacement 138i standard shaft B version replacement 138i standard Shaft A Material stainless steel: 1.4305/303 Shaft B Material stainless steel: 1.4305/303 Shaft A diameter (D) 30.0 mm Shaft B diameter (D) 30.0 mm Wave A key area (F) 20.0 mm Wave B key area (F) 20.0 mm Wave A key face length (C) 25.0 mm Wave B key face length (C) 25.0 mm Oil type synthetic food oil viscosity 68 Electrical connection terminal box Elek. Connection material polyamide 6 + glass fiber min. ambient temperature -25 °C max. ambient temperature 40 °C Speed at frequency 1 0.04 m/s Frequency 1 50 Hz external connection diagram M45 high voltage 400 V low voltage 230 V Rated current, high voltage 0.46 A rated current, low voltage 0.79 A Speed at frequency 2 0.05 m/s
Weight 19.57

Please contact us to request a price quote for Interroll - MI-DM0138 DM1383-ACL03B0E9UFA-357mm, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.


WE SELL ONLY NEW AND ORIGINAL PRODUCTS!

Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.

Where can I buy MI-DM0138 DM1383-ACL03B0E9UFA-357mm by Interroll in United Kingdom?

You can purchase MI-DM0138 DM1383-ACL03B0E9UFA-357mm by Interroll from RADWARD LTD. We serve customers across United Kingdom, offering competitive prices and reliable service.

What is the price of the MI-DM0138 DM1383-ACL03B0E9UFA-357mm?

For customized pricing and availability, please fill out our contact form or give us a call. We are dedicated to providing solutions that align with your specific requirements.

Who is the official distributor or seller of Interroll in United Kingdom?

While we are not the official distributor or seller of Interroll in United Kingdom, we source our products from reliable channels and offer you original Interroll equipment at competitive prices.

How can I access MI-DM0138 DM1383-ACL03B0E9UFA-357mm catalogs, user manuals, technical documents, and PDFs?

You can access catalogs, user manuals, and technical documents for MI-DM0138 DM1383-ACL03B0E9UFA-357mm on our website. Visit our resources section or contact us directly for specific documents.

Do you provide technical support for MI-DM0138 DM1383-ACL03B0E9UFA-357mm?

While we do not offer direct technical support, we can assist you in contacting the manufacturer to ensure you receive the support you need.
