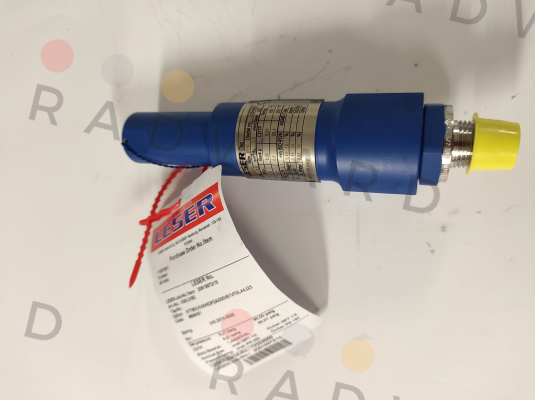

Leser - 4393.2882-90PSIG
| Manufacturer | Leser |
|---|---|
| Part Number | 4393.2882-90PSIG |
| Inner Code | 4811418 |
| Description | SAFETY RELIEF VALVE |
| Custom Code | 84814010 |
| Technical specification | Compact performance safety valve, type 439, for maximum tightness, closed spring cover, gas tight cap H2, for vapors, gases and liquids Technical specification: Order code output, line 1: K7TM33K4XH03P2AX00V61V70L44J23 Order code output, line 2: MB8H01 E body material: 1.4404/316L 1.4404/316L Total entry: (V61) NPT 1/2 external thread according to ASME B1.20.1 Total outlet: (V70) NPT 1/2 internal thread according to ASME B1.20.1 Nominal diameter inlet NPT 1/2 Nominal diameter outlet NPT 1/2 PN 250 pressure level inlet PN 160 pressure stage outlet d0 (ASME-DIN) [mm] 10.0 Outflow rate D/G: 0.45 Outflow rate F: 0.37 Response pressure: 90.00 Pressure unit: psi-g Response pressure [bar-g] 6.21 Response pressure in psi-g: 90.00 Cold set pressure [bar-g] 6.21 Cold setting pressure [psi-g] 90.07 Operating temperature: 105 Temperature unit: °C - Celsius Operating temperature [°C] 105.00 Operating temperature in °F: 221 Plate, metallic/Wst.: (L44) made of material 1.4404/316L Soft sealing plate: (J23) with FKM “L” soft seal (Viton, Fluorel, Technoflon) Spring material (X00) standard material Colouring: (P2A) 1-layer coating system in RAL 5005 in accordance with LID 1608.03 Approvals: (M33) Proof of setting pressure test (TRB 513 4.2, TRD 504 3.3.4): EN 10204-3.2 (TÜV North) Material quality certificate for: (H01) Housing — position 1 with material quality certificate 3.1 in accordance with DIN EN 10204 Documentation: (H03) LESER CGA Certificate for Global Application Acceptance Test Certificate 3.1 in accordance with DIN EN 10204 3. Identification, position: Set p: 90 psig Type and position of the 3rd identifier: (M16) World Shield marking 1st line |
| Weight | 1.514 |
Please contact us to request a price quote for Leser - 4393.2882-90PSIG, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
Where can I buy 4393.2882-90PSIG by Leser in United Kingdom?
You can purchase 4393.2882-90PSIG by Leser from RADWARD LTD. We serve customers across United Kingdom, offering competitive prices and reliable service.
What is the price of the 4393.2882-90PSIG?
For customized pricing and availability, please fill out our contact form or give us a call. We are dedicated to providing solutions that align with your specific requirements.
Who is the official distributor or seller of Leser in United Kingdom?
While we are not the official distributor or seller of Leser in United Kingdom, we source our products from reliable channels and offer you original Leser equipment at competitive prices.
How can I access 4393.2882-90PSIG catalogs, user manuals, technical documents, and PDFs?
You can access catalogs, user manuals, and technical documents for 4393.2882-90PSIG on our website. Visit our resources section or contact us directly for specific documents.
Do you provide technical support for 4393.2882-90PSIG?
While we do not offer direct technical support, we can assist you in contacting the manufacturer to ensure you receive the support you need.
