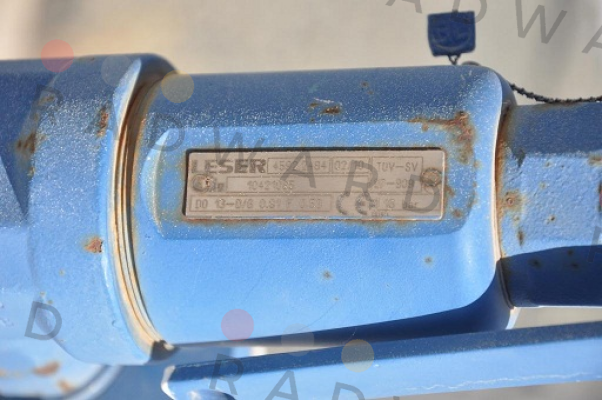

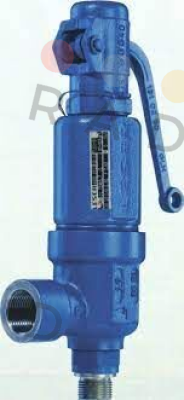

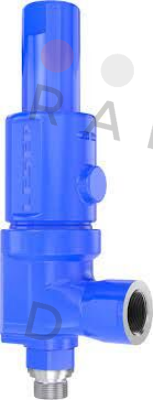

Leser - 4592.2484
| Manufacturer | Leser |
|---|---|
| Part Number | 4592.2484 |
| Inner Code | 3290225 |
| Description | safety valve |
| Technical specification | Compact performance safety valve, type 459, closed spring cover, gas-tight ventilation H4, for vapors, gases and liquids Technical specification: Ordercode output, line 1: K7RMB1K4XK3IP2AJ99X00V06V18L49 Ordercode output, line 2: (L49) E body material: 1.4404/316L 1.4404/316L Fl.Subsequent admission: (V06) NPS 3/4" Cl 300/600 in accordance with ASME B16.5 Fl.Subsequent outlet: (V18) NPS 1" Cl 150 according to ASME B16.5 NPS 3/4" inlet diameter Nominal outlet NPS 1" Pressure level entry 600 lbs Pressure rating outlet 150 lbs d0 (ASME-DIN) [mm] 13.0 Response pressure: 16.00 Pressure unit: bar-g Response pressure [bar-g] 16,00 Response pressure in psi-g: 232.06 Cold setting pressure [bar-g] 16.00 Cold set pressure [psi-g] 232.06 operating temperature: 20 Temperature unit: °C - Celsius Operating temperature [°C] 20.00 Operating temperature in °F: 68 Plate, metallic/Wst.: (L49) Made of material: 1.4122 Seal ring material: (MB1) Pressure screw material: (K7R) Pressure screw material: 1.4104 Spring hood material: (J99) Spring cover material 1.0619/ WCB/ WCC Spring material (X00) standard material Coloring: (P2A) 1-layer coating system in RAL 5005 in accordance with LID 1608.03 Technical version in accordance with serial no.: 10421085 Weight per valve approx. 4 kg |
| Weight | 4 |
Please contact us to request a price quote for Leser - 4592.2484, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
