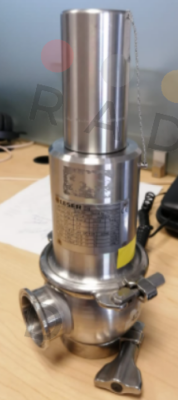

Leser - 4834.7712
| Manufacturer | Leser |
|---|---|
| Part Number | 4834.7712 |
| Inner Code | 3354614 |
| Description | Safety Valve |
| Custom Code | 84814010 |
| Technical specification | Order code output, line 1: X00I17A17L79L86H04B53J22H85A85 Housing material: (H04) 1.4435/316L Nominal inlet DN 40 Nominal outlet DN 40 Pressure inlet PN 16 pressure stage outlet PN 16 d0 (ASME-DIN) [mm] 25.0 Flow rate D/G: 0.38 Flow rate F: 0.26 Connection inlet (L79) SO - Clamp connection/DIN 32676/ DIN 11850 Connection outlet (L86) SO - Clamp connection/DIN 32676/ DIN 11850 Connection outlet (L86) SO - Clamp connection/DIN 32676/ DIN 11850 Pipe Standard Inlet (H85) according to DIN 11850 & DIN 11866 series A Pipe Standard Outlet (A85) according to DIN 11850 & DIN 11866 series A Clamp size inlet/inner Ø 38.0 mm Clamp size inlet /outside Ø 50.5 mm Clamp size leakage, inner Ø 38.0 mm Clamp size leakage, outside Ø 50.5 mm Response pressure: 6.00 Printing unit: bar-g Response pressure [bar-g] 6.00 Response pressure in psi-g: 87.02 cold setting pressure [bar-g] 6.00 cold setting pressure [psi-g] 87,02 Operating temperature: 20 Temperature unit: °C - Celsius Operating temperature [°C] 20.00 Operating temperature in °F: 68 Plate, soft sealing: (J22) with soft seal EPDM “D” Version according to reader serial number: 10373607 Clean Service Safety Valve, Type 483, for small and medium power, closed spring cap, gas-tight cap H2, for vapors, gases and liquids |
| Weight | 4.6 |
Please contact us to request a price quote for Leser - 4834.7712, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
Where can I buy 4834.7712 by Leser in United Kingdom?
You can purchase 4834.7712 by Leser from RADWARD LTD. We serve customers across United Kingdom, offering competitive prices and reliable service.
What is the price of the 4834.7712?
For customized pricing and availability, please fill out our contact form or give us a call. We are dedicated to providing solutions that align with your specific requirements.
Who is the official distributor or seller of Leser in United Kingdom?
While we are not the official distributor or seller of Leser in United Kingdom, we source our products from reliable channels and offer you original Leser equipment at competitive prices.
How can I access 4834.7712 catalogs, user manuals, technical documents, and PDFs?
You can access catalogs, user manuals, and technical documents for 4834.7712 on our website. Visit our resources section or contact us directly for specific documents.
Do you provide technical support for 4834.7712?
While we do not offer direct technical support, we can assist you in contacting the manufacturer to ensure you receive the support you need.
