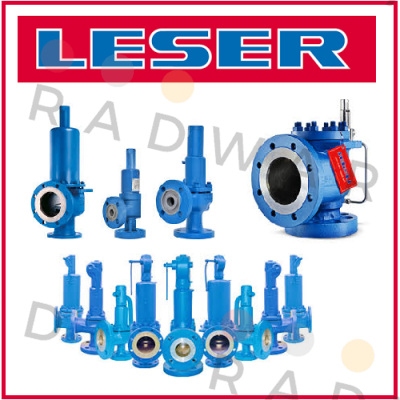

Leser - 5262.0024
| Manufacturer | Leser |
|---|---|
| Part Number | 5262.0024 |
| Inner Code | 4709367 |
| Description | PRESSURE SAFETY VALVES |
| Custom Code | 84814010 |
| Technical specification | API Series safety valve, type 526, Orifice D, closed spring hood, gas-tight ventilation H4, for vapors, gases and liquids Technical specification: Order code output, line 1: K7RK5KK2SK2RJ69MB1K4XH03I63J83 Order code output, line 2: P2AJ99X01L39H89H79H65H22L8JK1E Order code output, line 3: J24H01N68 Rulebook: ASME Section VIII Medium: gases gasses Case material: (H22) Housing made of material 1.0619 (GP240GH) (with 3-fold certificate: WCB, WCC,1.0619) Nominal size entry NPS 1" NPS 2 inch diameter outlet d0 (ASMEDIN) [mm] 14.0 Outflow coefficient D/G: 0.45 Outflow coefficient F: 0.32 Flange pressure stage entry (H65) 300 lbs according to ASME B 16.5 Flange pressure stage outlet (H79) 150 lbs according to ASME B 16.5 Inlet flange sealing surface: (H89) serrated spiral finish (Ra = 3.2 - 6.3 μm) according to ASME B16.5 Outlet flange sealing surface: (L39) serrated spiral finish (Ra = 3.2 - 6.3 μm) according to ASME B16.5 Response pressure: 18.00 Pressure unit: bar-g Response pressure [bar-g] 18.00 Response pressure in psi-g: 261.07 Cold setting pressure [bar-g] 18.00 Cold setting pressure [psi-g] 261.07 Operating temperature: 118 Temperature unit: °C - Celsius Operating temperature [°C] 118,00 Operating temperature in °F: 244 Seat bushing material (K1E) Seat bush material: 1.4408/ASME SA-351 CF8M plate, metallic/Wst.: (J24) 1.4122, metallic sealing plate, rotatable with detachable bell Ventilation/cap: (J69) H4 with locking screw (test gag) Bellows: (J83) Back pressure compensating bellows, material: Inconel 625/2.4856, 316L connectors, spring cover with open control port Guide wheel material: (I63) Guide wheel material: 1.4404/316L Spindle material (K4X) Spindle material:1.4021 Adjusting ring material: (K2S) Locking screw material: (K2R) Hood material: (J99) Spring hood material 1.0619/ WCB/ WCC Spring material (X01) heat-resistant spring Wst stud screws Item 55 (L8J) Material stud screws pos. 55:1.7225/SA-193 B7/SA-320 L7 Wst hexagon nuts Item 56 (L9J) Material hexagon nuts Pos. 56:1.7225/SA-194 size 7/SA-320 7L Colouring: (P2A) 1-layer coating system in RAL 5005 in accordance with LID 1608.03 Material quality certificate for: (H01) Housing — position 1 with material quality certificate 3.1 in accordance with DIN EN 10204 Delivery specification: (N68) Approval in accordance with ASME Sec. XIII for ASME VIII DIV. 1 (UV stamp) Documentation: (H03) LESER CGA Certificate for Global Application Inspection Certificate 3.1 in accordance with DIN EN 10204 Tag no., valve 1: PSV-330111 Tag no., valve 2: PSV-330321 Type and location of day no.: (M25) Labeling with tag (foil/paper) |
| Weight | 16.6 |
Please contact us to request a price quote for Leser - 5262.0024, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
Where can I buy 5262.0024 by Leser in United Kingdom?
You can purchase 5262.0024 by Leser from RADWARD LTD. We serve customers across United Kingdom, offering competitive prices and reliable service.
What is the price of the 5262.0024?
For customized pricing and availability, please fill out our contact form or give us a call. We are dedicated to providing solutions that align with your specific requirements.
Who is the official distributor or seller of Leser in United Kingdom?
While we are not the official distributor or seller of Leser in United Kingdom, we source our products from reliable channels and offer you original Leser equipment at competitive prices.
How can I access 5262.0024 catalogs, user manuals, technical documents, and PDFs?
You can access catalogs, user manuals, and technical documents for 5262.0024 on our website. Visit our resources section or contact us directly for specific documents.
Do you provide technical support for 5262.0024?
While we do not offer direct technical support, we can assist you in contacting the manufacturer to ensure you receive the support you need.
