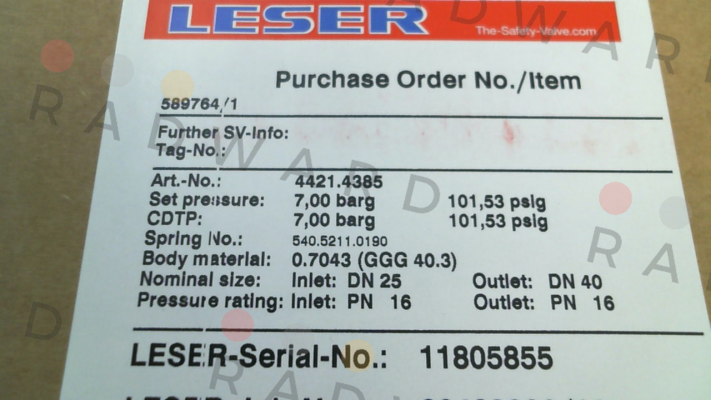

Leser - 4421.4385
| Manufacturer | Leser |
|---|---|
| Part Number | 4421.4385 |
| Inner Code | 4013091 |
| Description | High performance safety valve |
| Custom Code | 84814010 |
| Technical specification | High performance safety valve, type 442 DIN, open spring hood, ventilation H3, for vapors, gases and liquids Order code output, line 1: K7TM33MB1K4XH03K3IP2AJ36X00H88 Order code output, line 2: H84H51H45H23L8JL64L49H01 Case material: (H23) 0.7043 (GGG40.3) Material note: ABW. Material is delivered! Nominal diameter inlet DN 25 Nominal diameter outlet DN 40 d0 (ASMEDIN) [mm] 23.0 Outflow coefficient D/G: 0.70 Outflow rate F: 0.45 Flange pressure stage entry (H45) PN 16 in accordance with DIN EN 1092 Flange pressure stage outlet (H51) PN 16 in accordance with DIN EN 1092 Inlet flange sealing surface: (H84) Form B1 (rough) according to DIN EN 1092 Outlet flange sealing surface: (H88) Form B1 (rough) according to DIN EN 1092 Response pressure: 7.00 Pressure unit: bar-g Response pressure [bar-g] 7.00 Response pressure in psi-g: 101.53 Cold setting pressure [bar-g] 7.00 Cold setting pressure [psi-g] 101.53 Operating temperature: 20 Temperature unit: °C - Celsius Operating temperature [°C] 20.00 Operating temperature in °F: 68 plate, metallic/Wst.: (L49) Made of material: 1.4122 Seal ring material: (MB1) Graphite sealing ring/1.4401 Hood material: (J36) 0.7043 (GGG 40.3) Spring material (X00) standard material Colouring: (P2A) 1-layer coating system in RAL 5005 in accordance with LID 1608.03 Guide wheel material: (K3I) Guide wheel material: 1.4104/ 430F Spindle material (K4X) Spindle material:1.4021 Pressure screw material: (K7T) 1.4104/ 430F + PTFE/ glass Wst stud screws Item 55 (L8J) Material stud screws pos. 55:1.7225/SA-193 B7/SA-320 L7 Wst hexagon nuts Item 56 (L9J) Material hexagon nuts Pos. 56:1.7225/SA-194 size 7/SA-320 7L Acceptances: (M33) Proof of the adjustment pressure test (TRB 513 4.2, TRD 504 3.3.4): EN 10204-3.2 (TÜV-Nord) Material quality certificate for: (H01) Housing — position 1 with material quality certificate 3.1 in accordance with DIN EN 10204 Documentation: (H03) LESER CGA Certificate for Global Application Inspection Certificate 3.1 in accordance with DIN EN 10204 2. Identification, item (1): 354444214385A77P Type and position of the 2nd indicator: (M25) Labeling with tag (foil/paper) |
| Weight | 9.2 |
Please contact us to request a price quote for Leser - 4421.4385, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
Where can I buy 4421.4385 by Leser in United Kingdom?
You can purchase 4421.4385 by Leser from RADWARD LTD. We serve customers across United Kingdom, offering competitive prices and reliable service.
What is the price of the 4421.4385?
For customized pricing and availability, please fill out our contact form or give us a call. We are dedicated to providing solutions that align with your specific requirements.
Who is the official distributor or seller of Leser in United Kingdom?
While we are not the official distributor or seller of Leser in United Kingdom, we source our products from reliable channels and offer you original Leser equipment at competitive prices.
How can I access 4421.4385 catalogs, user manuals, technical documents, and PDFs?
You can access catalogs, user manuals, and technical documents for 4421.4385 on our website. Visit our resources section or contact us directly for specific documents.
Do you provide technical support for 4421.4385?
While we do not offer direct technical support, we can assist you in contacting the manufacturer to ensure you receive the support you need.
