Leser - 4414.4642
| Manufacturer | Leser |
|---|---|
| Part Number | 4414.4642 |
| Inner Code | 4667608 |
| Description | Pressure Relief Valve |
| Custom Code | 84814010 |

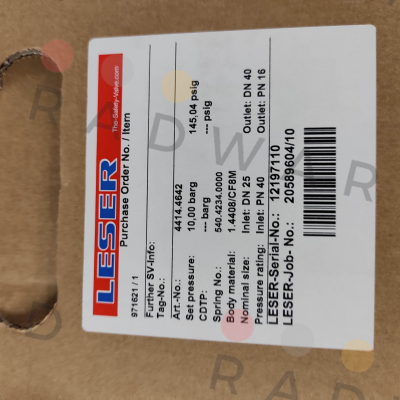

| Technical specification | LESER Order Code Set Pressure 10,00 bar-g Cold Differential Test Pressure 10,00 bar-g Min. superimp. back pressure 0,00 bar-g Max. superimp. back pressure - Operating Temperature 20 °C Built-up Back Pressure 0,00 bar-g Lifting Device H2 Cap, screwed Valve Type Conventional Design Standard Dimensions (a, b, H) 105 mm, 100 mm, 334 mm d₀ 23,0 mm Discharge Area 415,5 mm² Orifice acc. to API 526 not applicable Kd (S/G) ASME | PED 0,699 | 0,700 Standard Kd (L) ASME | PED 0,521 | 0,450 Standard Inlet Connection PN 40 DIN EN 1092 DN 25 Form B1: "rough" DIN EN 1092 Outlet Connection PN 16 DIN EN 1092 DN 40 Form B1: "rough" DIN EN 1092 Body Material 1.4408/SA-351 CF8M - SS Nozzle / Seat Material 1.4404/316L - SS Bonnet Material 1.4408/SA-351 CF8M - SS Disc Material 1.4404/316L - SS Spring Material 1.4310 - Stainless Steel Pressure limit spring min. [bar-g] 9,01 Pressure limit springmax. [bar-g] 15,20 |
| Weight | 10.323 |
Please contact us to request a price quote for Leser - 4414.4642, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
Where can I buy 4414.4642 by Leser in United Kingdom?
You can purchase 4414.4642 by Leser from RADWARD LTD. We serve customers across United Kingdom, offering competitive prices and reliable service.
What is the price of the 4414.4642?
For customized pricing and availability, please fill out our contact form or give us a call. We are dedicated to providing solutions that align with your specific requirements.
Who is the official distributor or seller of Leser in United Kingdom?
While we are not the official distributor or seller of Leser in United Kingdom, we source our products from reliable channels and offer you original Leser equipment at competitive prices.
How can I access 4414.4642 catalogs, user manuals, technical documents, and PDFs?
You can access catalogs, user manuals, and technical documents for 4414.4642 on our website. Visit our resources section or contact us directly for specific documents.
Do you provide technical support for 4414.4642?
While we do not offer direct technical support, we can assist you in contacting the manufacturer to ensure you receive the support you need.
