Maxon - 323772
| Manufacturer | Maxon |
|---|---|
| Part Number | 323772 |
| Inner Code | 516454 |

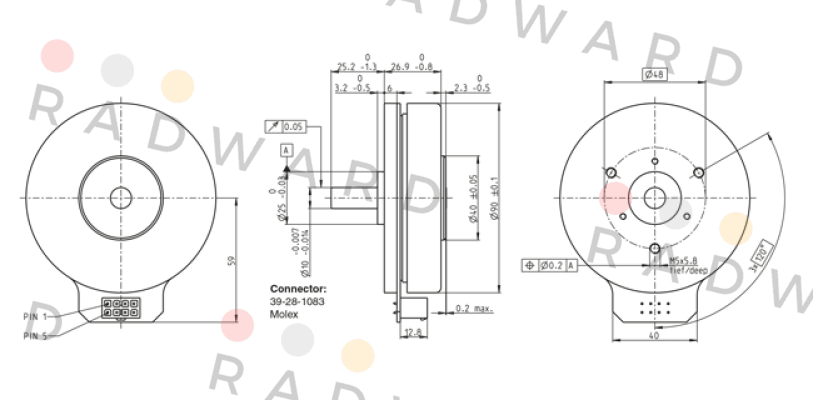

| Description | 24 v EC 90 flat ∅90 mm, brushless, 90 Watt |
| Technical specification | VALUES AT NOMINAL VOLTAGE Nominal voltage 24 V No load speed 3190 rpm No load current 538 mA Nominal speed 2590 rpm Nominal torque (max. continuous torque) 444 mNm Nominal current (max. continuous current) 6.06 A Stall torque 4940 mNm Stall current 70 A Max. efficiency 83 % CHARACTERISTICS Terminal resistance 0.343 Ω Terminal inductance 0.264 mH Torque constant 70.5 mNm/A Speed constant 135 rpm/V Speed / torque gradient 0.659 rpm/mNm Mechanical time constant 21.1 ms Rotor inertia 3060 gcm² THERMAL DATA Thermal resistance housing-ambient 1.57 K/W Thermal resistance winding-housing 2.7 K/W Thermal time constant winding 34.1 s Thermal time constant motor 234 s Ambient temperature -40...+100 °C Max. winding temperature +125 °C MECHANICAL DATA Bearing type ball bearings Max. speed 5000 rpm Axial play 0.14 mm Max. axial load (dynamic) 12 N Max. force for press fits (static) 180 N (static, shaft supported) 8000 N Max. radial load 68 N, 5 mm from flange |
| Weight | 0.6 |
