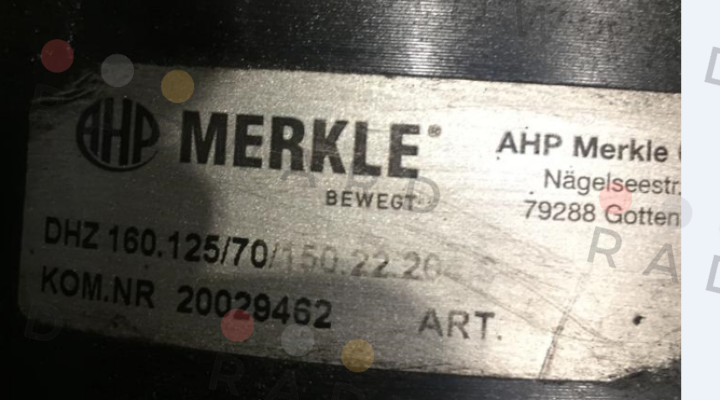

Merkle - DHZ 160.125/70.22.204.150 S.AA11.EE44.DD22
| Manufacturer | Merkle |
|---|---|
| Part Number | DHZ 160.125/70.22.204.150 S.AA11.EE44.DD22 |
| Inner Code | 4811369 |
| Custom Code | 84122180 |
| Technical specification | Article 121015 AHP hydraulic cylinder Drawing number 13.56080.24 Type DIN cylinder 160bar cylinder type designation DHZ 160 piston diameter 125 mm rod diameter 70 mm Design 22 = round flange at the front Function type 204 = double-acting with end position cushioning on both sides stroke 150 mm Special S = special cylinder, different from the AHP standard Ventilation EE44 = ventilation screw on the head and bottom side in position 4 Position damping DD22 = damping screw on head side and bottom side on position 2 Connection changed AA11 = pipe thread connection on head and bottom side to position 1 max. operating pressure 160 bar (in accordance with AHP 20029462) |
| Weight | 90 |
Please contact us to request a price quote for Merkle - DHZ 160.125/70.22.204.150 S.AA11.EE44.DD22, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
