Miltac - XO6-2-F51

Manufacturer Miltac
Part Number XO6-2-F51
Inner Code 484653

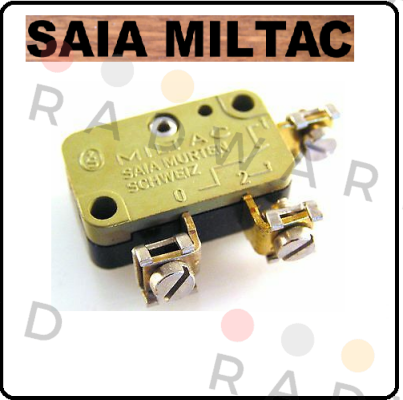

Description roller switch
Technical specification XO microswitch - Size: standard with metal housing - Operating force: 4.8 N - Connections: screw connections - Circuit diagram: change-over contact (CO) - Actuator: F51 roller tappet with M15 threaded sleeve for Central mounting, roll position longitudinally, with extended Caster (3.4 mm) - Contact material: solid silver rivet - Approval: UL, CSA, VDE, SEMKO, NEMKO, DEMKO, SEV - Degree of protection: IP42 Special feature: -
Weight 1

Please contact us to request a price quote for Miltac - XO6-2-F51 , or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.


WE SELL ONLY NEW AND ORIGINAL PRODUCTS!

Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.

Where can I buy XO6-2-F51 by Miltac in United Kingdom?

You can purchase XO6-2-F51 by Miltac from RADWARD LTD. We serve customers across United Kingdom, offering competitive prices and reliable service.

What is the price of the XO6-2-F51 ?

For customized pricing and availability, please fill out our contact form or give us a call. We are dedicated to providing solutions that align with your specific requirements.

Who is the official distributor or seller of Miltac in United Kingdom?

While we are not the official distributor or seller of Miltac in United Kingdom, we source our products from reliable channels and offer you original Miltac equipment at competitive prices.

How can I access XO6-2-F51 catalogs, user manuals, technical documents, and PDFs?

You can access catalogs, user manuals, and technical documents for XO6-2-F51 on our website. Visit our resources section or contact us directly for specific documents.

Do you provide technical support for XO6-2-F51 ?

While we do not offer direct technical support, we can assist you in contacting the manufacturer to ensure you receive the support you need.

Miltac-XO6-2-F51 price
5 / 5
★ ★ ★ ★ ★
(1)
Comments

More products of Miltac

  • 9300408 XO1-F1

    XO microswitch - size: Standard - Operating Force: 4.8N - Connections: screw terminals - switching scheme: changer (CO) - Actuator: F1-roller plunger with M15 threaded sleeve for Central fixing, roller position longitudinally or transversely, with extended trailing (3.6 mm) - Contact material: solid Silver rivet - Housing material: thermoset polyester molding compound modified UP (white) - Approval: UL, CSA, VDE, SEMKO, NEMKO, DEMKO, SEV - Protection: IP40 - Special Features: -

  • 9300741

    XO6-2-F51 XO microswitch - size: Standard with metal housing - Operating Force: 4.8N - Connections: screw terminals - switching scheme: changer (CO) - Actuator: F51-roller plunger with M15 threaded sleeve for Central fixing, along roller position, with extended (Mm 3,4) run- - Contact material: solid Silver rivet - Approval: UL, CSA, VDE, SEMKO, NEMKO, DEMKO, SEV - Protection: IP42

  • CR1MR-UL

    CR1 microswitch - size: Standard - actuating force: 2.3 N - Differential travel: 0.8 mm - Connections: 6BA-screw terminals with solder tails - switching scheme: changer (CO) - Actuator: MR-lever roller lever, l = 53.0 mm, inverse function - Contact material: solid Silver rivet - Housing material: phenol resin molding material Type 31.5 (black) - Approval: UL, CSA - Protection: IP40

  • EM41R10/1S

    Limit switch

  • MK V11 D15 G.

    (Microswitch MK MK series microswitches - size: Standard - Operating Force: 4N - Release force: 3 N - resting position: 33.6 mm max. - Switching point: tbd 33.1 +/-. mm - differential travel: 0.05 mm - Stopping distance: 2.2 mm - Connections: screw terminals with self-lifting contact plate - switching scheme: changer (CO) - Actuator: D15 actuator, telescopic tappet with a roller (longitudinal) - Contact material. Galvanically gilded (1 micron) solid Silver rivets + tooth More Pen / double contact system - Housing material: GF-reinforced thermoplastic (black) - Approval: UL (cUL and Usul), CE - Protection: IP40 with additional cover for the connections - Special Features: -)

  • MK V11 R59

    Microswitch MK MK series microswitches - size: Standard - Operating Force: 2.07 N - Release Force: 2N - resting position: 33.2 mm max. - Switching point: tbd 30.7 +/-. mm - Differential travel: 0.2 mm - Stopping distance: 3.9 mm - Connections: screw terminals with self-lifting contact plate - switching scheme: changer (CO) - Actuator: R59-lever roller lever arm, l = 17.8 mm, inverse switching

  • PN4K63

    microswitch

  • X01-81~F1

    The switch can be used in Zinser RM321 ring machine

  • X01-H2Z18

    Limit siviç

  • 9300422

    XO-Mikroschalter

  • XO1-T1 / Art.Nr. 9300429

    XO-Mikroschalter / Baugrösse: Standard / Betätigungskraft: 2,88 N / Anschlüsse: Schraubanschlüsse / Schaltschema: Wechsler (CO) / Betätiger: T1-Hebel, Rollenhebel, inverse Funktion, l=20mm / Kontaktwerkstoff: massiver Silberniet / Werkstoff Gehäuse: Duroplast, Polyester-Pressmasse modifiziert UP (weiss) / Zulassung: UL, CSA, VDE, SEMKO, NEMKO, DEMKO, SEV / Schutzart: IP40 / Besonderheit: -

  • X06 - 2 - F51

    Position switch

  • XGG6-88-Z1

    XG microswitch

  • XO1-F1 9300408

    (XO microswitch - size: Standard - Operating Force: 4.8N - Connections: screw terminals - switching scheme: changer (CO) - Actuator: F1-roller plunger with M15 threaded sleeve for Central fixing, roller position longitudinally or transversely, with extended trailing (3.6 mm) - Contact material: solid Silver rivet - Housing material: thermoset polyester molding compound modified UP (white) - Approval: UL, CSA, VDE, SEMKO, NEMKO, DEMKO, SEV - Protection: IP40 - Special Features: - as of requested switch, but NOT with galv. gold contacts)

  • XO1-S1

    Item No. 9300427 XO microswitch - size: Standard - Operating Force: 0.47 N - Connections: screw terminals - switching scheme: changer (CO) - Actuator: S1-lever roller lever, l = 46 mm - Contact material: solid Silver rivet - Housing material: thermoset polyester molding compound modified UP (white) - Approval: UL, CSA, VDE, SEMKO, NEMKO, DEMKO, SEV - Protection: IP40

  • XO6-2-E51

    XO microswitch - size: Standard with metal housing - Operating Force: 4.5N - Connections: screw terminals - switching scheme: changer (CO) - Actuator: E51-Plunger with M12 threaded sleeve for Central fixing, extended stopping distance (5.5 mm) - Contact material: solid Silver rivet - Approval: UL, CSA, VDE, SEMKO, NEMKO, DEMKO, SEV - Protection: IP42 - Special Features: -
