Moeller (Eaton) - ATO-HTLS-ARL
| Manufacturer | Moeller (Eaton) |
|---|---|
| Part Number | ATO-HTLS-ARL |
| Inner Code | 4937693 |
| Description | High Temperature Limit Switch with Adjustable Roller Lever |

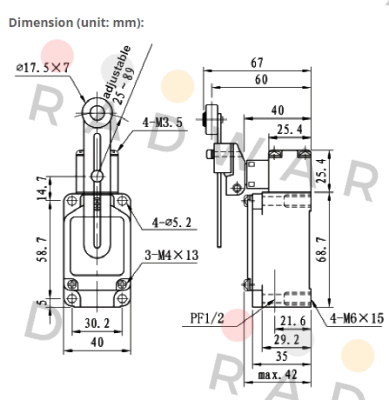

| Technical specification | Adjustable radius of roller lever 25-89mm Rated voltage 220VAC (Customizable rated voltage is shown in the reference table below.) Rated current 5A (Customizable rated current is shown in the reference table below.) Contact type 1NO+1NC (NC pin: 1 & 2, NO pin: 3 & 4) Operating speed 1mm/s~2m/s Operating frequency Machinery: 120 times/minute Electric: 30 times/minute Contact resistance ＜15MΩ, initial stage Insulation resistance ＞100MΩ (＜500VDC) Withstand voltage Between no-connection terminals: 1000VAC, 50/60Hz lasts 1 minute Between the terminal and the contact: 2000VAC, 50/60Hz lasts 1 minute Between terminal and no-load current metal: 2200VAC, 50/60Hz lasts 1 minute Vibration Misoperation endurance: 10~55Hz, 1.5mm, double-amplitude Bottom terminal thread size M20*1.5mm Impact Mechanical endurance: ＞1000m/s2 (＞100G) Misoperation endurance: ＞300m/s2 (＞30G) Shell material Cast aluminum alloy Temperature -10~+350℃ (14~622℉) Humidity ＜95%RH Working life Machinery: ＞15million times Electric: ＞0.5million times Protection class IP66 |
| Weight | 0.258 |
Please contact us to request a price quote for Moeller (Eaton) - ATO-HTLS-ARL, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
Where can I buy ATO-HTLS-ARL by Moeller (Eaton) in United Kingdom?
You can purchase ATO-HTLS-ARL by Moeller (Eaton) from RADWARD LTD. We serve customers across United Kingdom, offering competitive prices and reliable service.
What is the price of the ATO-HTLS-ARL?
For customized pricing and availability, please fill out our contact form or give us a call. We are dedicated to providing solutions that align with your specific requirements.
Who is the official distributor or seller of Moeller (Eaton) in United Kingdom?
While we are not the official distributor or seller of Moeller (Eaton) in United Kingdom, we source our products from reliable channels and offer you original Moeller (Eaton) equipment at competitive prices.
How can I access ATO-HTLS-ARL catalogs, user manuals, technical documents, and PDFs?
You can access catalogs, user manuals, and technical documents for ATO-HTLS-ARL on our website. Visit our resources section or contact us directly for specific documents.
Do you provide technical support for ATO-HTLS-ARL?
While we do not offer direct technical support, we can assist you in contacting the manufacturer to ensure you receive the support you need.
