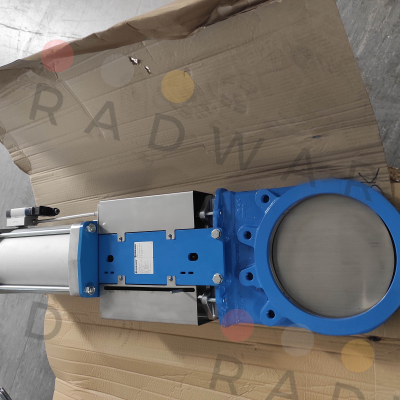

Orbinox - Typ EXN DN250
| Manufacturer | Orbinox |
|---|---|
| Part Number | Typ EXN DN250 |
| Inner Code | 4768414 |
| Description | knife pusher |

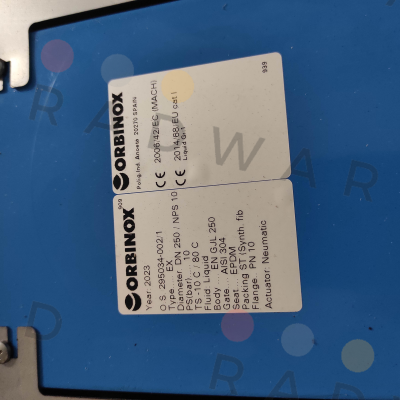

| Technical specification | short-length intermediate flange valve, sealing on one side, for installation between flanges in accordance with EN 1092-2 PN 10 Nominal size: DN 250 Housing: GJL 250/GG 25, epoxy coated RAL 5015 Blade: stainless steel AISI 304 (1.4301) Piston rod: stainless steel AISI 430 (1.4016) Construction bracket: steel, epoxy coated Ready for Omron D4N 1120 roller limit switch Contact protection: stainless steel AISI 304 (1.4301) Stuffing box goggles: up to DN 300 aluminum, from DN 350 ductile cast iron Stuffing box packing: PTFE-soaked synthetic fiber (ST type) Sealing ring: EPDM Sealing ring: Type A (standard), stainless steel AISI 304 (1.4301) Actuation: double-acting aluminum pneumatic actuator Control pressure: 5 — 7 bar allowable differential pressure in flow direction: DN 50 to 250 = 10 bar, DN 300 to DN 400 = 6 bar DN 450 = 5 bar, DN 500 to DN 600 = 4 bar Accessories: Festo solenoid valve 5/2 VSNC-FC-M52-MD-G14-FN (REF. 577267) with Festo FESTO VACN-N-A1-1 24V DC sink (REF. 8029144) with FESTO MSSD-C SEGUN DIN EN 175301- plug 803 type A (REF. 34583) Without flange gasket and mounting material Structurally identical to EX-N with OS 285364-006 |
| Weight | 50 |
Please contact us to request a price quote for Orbinox - Typ EXN DN250, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
Where can I buy Typ EXN DN250 by Orbinox in United Kingdom?
You can purchase Typ EXN DN250 by Orbinox from RADWARD LTD. We serve customers across United Kingdom, offering competitive prices and reliable service.
What is the price of the Typ EXN DN250?
For customized pricing and availability, please fill out our contact form or give us a call. We are dedicated to providing solutions that align with your specific requirements.
Who is the official distributor or seller of Orbinox in United Kingdom?
While we are not the official distributor or seller of Orbinox in United Kingdom, we source our products from reliable channels and offer you original Orbinox equipment at competitive prices.
How can I access Typ EXN DN250 catalogs, user manuals, technical documents, and PDFs?
You can access catalogs, user manuals, and technical documents for Typ EXN DN250 on our website. Visit our resources section or contact us directly for specific documents.
Do you provide technical support for Typ EXN DN250?
While we do not offer direct technical support, we can assist you in contacting the manufacturer to ensure you receive the support you need.
