PCH Engineering - PCH1420/CHF8460
| Manufacturer | PCH Engineering |
|---|---|
| Part Number | PCH1420/CHF8460 |
| Inner Code | 3052362 |

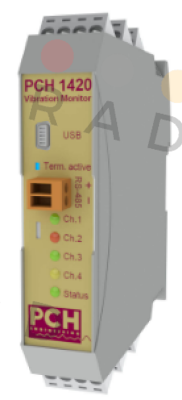

| Description | 4 ch vibration monitor |
| Technical specification | PCH1420/CHF8460 -4 channel vibration monitoring Ch1-4 IEPE - 4 inputs for IEPE piezo transducers 1. Machine size monitoring in accordance with DIN ISO 10816-3 - Vibration velocity measurement variable - Measurement range 0 - 20 mm/s factory setting - Frequency 10 Hz - 1000 Hz, 2 Hz - 10 kHz (VDI 3832) 2. Monitoring of selective frequency ranges in accordance with VDI3832 - Frequency 2Hz - 10kHz, or by application* - Analysis function, peak value, envelope, crest factor and others Monitoring through limits A1-4 and D1-4 * Optionally 4 alarm relays or 4 analog outputs, selectable 4 alarm outputs, open colector 30V DC/ 0.1A - Response delay A1- 0- 99 s. D1- 0- 99 s.* - Alarm A1 = 4.5 mm/s factory setting - Alarm D1 = 11 mm/s factory setting - 4 analog outputs, RMS 4-20mA, selectable for DIN ISO 10816-3 or VDI 3832, Digital input for test function and alarm lock, via external connection - PNP-NPN speed input with monitoring function - Process input, 4-20 mA, example Pt 100 - 1 system relay for self-monitoring, safety relay in accordance with PL- D - +24 VDC supply, connection via terminals - USB and RS485 interface - Module-addressable with connection to an Ethernet module - UA in OPC UA (Unified Architecture) server - * Parameter setting via VibStudio with analysis and diagnosis function - Plastic housing for DIN rail mounting, IP54 Customs code: 90318080 |
| Weight | 2 |
Please contact us to request a price quote for PCH Engineering - PCH1420/CHF8460, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
Where can I buy PCH1420/CHF8460 by PCH Engineering in United Kingdom?
You can purchase PCH1420/CHF8460 by PCH Engineering from RADWARD LTD. We serve customers across United Kingdom, offering competitive prices and reliable service.
What is the price of the PCH1420/CHF8460?
For customized pricing and availability, please fill out our contact form or give us a call. We are dedicated to providing solutions that align with your specific requirements.
Who is the official distributor or seller of PCH Engineering in United Kingdom?
While we are not the official distributor or seller of PCH Engineering in United Kingdom, we source our products from reliable channels and offer you original PCH Engineering equipment at competitive prices.
How can I access PCH1420/CHF8460 catalogs, user manuals, technical documents, and PDFs?
You can access catalogs, user manuals, and technical documents for PCH1420/CHF8460 on our website. Visit our resources section or contact us directly for specific documents.
Do you provide technical support for PCH1420/CHF8460?
While we do not offer direct technical support, we can assist you in contacting the manufacturer to ensure you receive the support you need.
