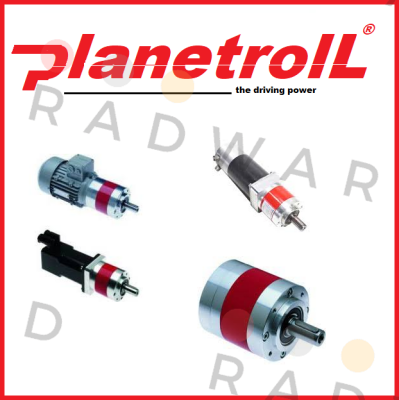

Planetroll - 602-13119-0,25D2TR3-4(12h6x29)
| Manufacturer | Planetroll |
|---|---|
| Part Number | 602-13119-0,25D2TR3-4(12h6x29) |
| Inner Code | 4883707 |
| Custom Code | 8501 51 00 |
| Technical specification | VARIDUCER variable speed drive unit Type 0.25D2TR3-4 (12h6x29) ===================== consisting of: -------------------- a) Three-phase motor in “IE2" b) Variable speed transmission!” V A R I D U C E R” specifications ------------------------- Mounting side: right Design: similar to B14-like Installation position: 1 (B14) Speed range: 0 to approx. 1200 rpm (50 Hz) Output torques: approx. 2.5 Nm from 50 to 600 rpm approx. 1.4 Nm at 1200 rpm Drive components ------------------------------- 501-162921 1 PIECE drive-side three-phase motor 0.25/0.29 kW, 2835/3435 rpm, 230/400 V, 50 Hz, 1.2/0.69 A; 460 V, 60 Hz, 0.66 A, IP 55, Isol.Kl.F, aluminum terminal box, 1x M25x1.5/1x M16x1.5 cable entry, (220-240/380-420V, 50 Hz), efficiency class IE2 applies to 230/400V 50Hz and 460V 60Hz, frame size 63, B14-90. 2 1 PC VARIDUCER type T3 variable speed transmission (IEC motor mounting) on the drive side: for BG 63, B14-90 engine mounting On the output side: B14-like Ø109, centering. Ø40J6x2, 4x M5x11 on TK Ø96, output shaft Ø12h6x29 302-073183 1 PIECE HVK 5 control element: Handwheel (d0=40) with fine adjustment scale; coarse scale 0 - 12, fine scale 0 - 100 602-088794 1 PIECE + RAL 9006 painting -white aluminum- |
| Weight | 7.1 |
