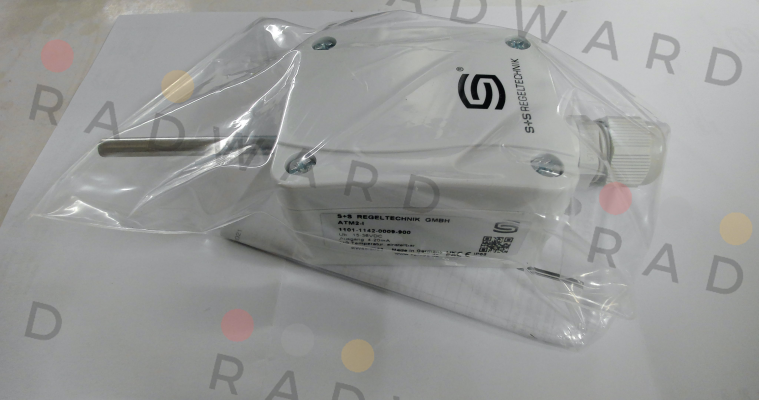

1101-1142-0009-900 / ATM2-I S+S REGELTECHNIK Sales In United Kingdom
| Manufacturer | S+S REGELTECHNIK |
|---|---|
| Part Number | 1101-1142-0009-900 / ATM2-I |
| Inner Code | 3776949 |
| Description | Outside temperature transmitter |
| Custom Code | 90251900 |
| Technical specification | Power consumption < 1,0 W/ 24 V DC < 2,2 VA/ 24 V AC Voltage supply 15...36 V DC depending on working resistance, residual ripple stabilised ± 0.3 V Temperature deviation typically ± 0.2 K at +25 °C Working resistance Ra (ohm) = (Ub -14 V)/ 0.02 A for I variant Sensor Pt1000, DIN EN 60751, class B (Perfect Sensor Protection) Connection type 2- or 3-wire connection Ambient temperature Measuring transducer –30...+70 °C Process connection by screws Protective tube stainless steel V4A (1.4571), Ø 6 mm, NL = 65 mm Electrical connection 0.14 - 1.5 mm² via terminal screws Cable gland M 16 x 1.5, including strain relief, exchangeable, max. inner diameter 10.4 mm Permissible air humidity < 95 % RH, non-precipitating air Protection class III (according to EN 60 730) Output 4...20 mA Measuring ranges multi-range switching with 8 switchable measuring ranges, see table (other ranges optional) operating range –30...+70 °C with manual zero point correction (± 10 K) Cable connection cable gland, plastic (M 16 x 1.5; with strain relief, exchangeable, max. inner diameter 10.4 mm) or M12 connector according to DIN EN 61076-2-101 (optional on request) Housing plastic, UV-stabilised, material polyamide, 30 % glass-globe reinforced, with quick-locking screws (slotted/ Phillips head - combination), colour traffic white (similar to RAL 9016) Housing dimensions 72 x 64 x 37,8 mm (Tyr 1) Protection type IP 65 (according to EN 60 529) Housing tested, TÜV SÜD, Report No.713139052 (Tyr 1) Standards CE conformity, electromagnetic compatibility according to EN 61326, according to EMC Directive 2014/ 30/ EU |
| Weight | 0.156 |
Please contact us to request a price quote for S+S REGELTECHNIK - 1101-1142-0009-900 / ATM2-I, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
Where can I buy 1101-1142-0009-900 / ATM2-I by S+S REGELTECHNIK in United Kingdom?
You can purchase 1101-1142-0009-900 / ATM2-I by S+S REGELTECHNIK from RADWARD LTD. We serve customers across United Kingdom, offering competitive prices and reliable service.
What is the price of the 1101-1142-0009-900 / ATM2-I?
For customized pricing and availability, please fill out our contact form or give us a call. We are dedicated to providing solutions that align with your specific requirements.
Who is the official distributor or seller of S+S REGELTECHNIK in United Kingdom?
While we are not the official distributor or seller of S+S REGELTECHNIK in United Kingdom, we source our products from reliable channels and offer you original S+S REGELTECHNIK equipment at competitive prices.
How can I access 1101-1142-0009-900 / ATM2-I catalogs, user manuals, technical documents, and PDFs?
You can access catalogs, user manuals, and technical documents for 1101-1142-0009-900 / ATM2-I on our website. Visit our resources section or contact us directly for specific documents.
Do you provide technical support for 1101-1142-0009-900 / ATM2-I?
While we do not offer direct technical support, we can assist you in contacting the manufacturer to ensure you receive the support you need.
