Steimel - A-SF2/20RD-VLFM,
| Manufacturer | Steimel |
|---|---|
| Part Number | A-SF2/20RD-VLFM, |
| Inner Code | 3837965 |
| Description | Pump unit |
| Custom Code | 84136039 |

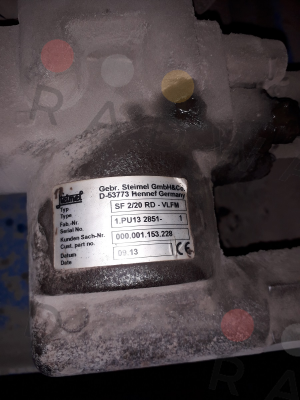

| Technical specification | Siemens AG Material number: 000.001.162.874 Gear pump unit: SF 2/20 RD - VLFM Product no.: ASF2-20RD-170426R Dimension sheet: DPA052D-090LFM-R33 Spare part list: DET052020RD-165R Suction and pressure connection: G 1/SAE 1 Case parts: EN-GJL-250 (GG-25) Pinion shafts, noise opti.: 16MnCrS5, egh., oblique angle Storage: multi-layer Shaft seal: radial shaft seal Elastomers: FKM Conveying medium: lubricating oil Viscosity: 50-5000 cSt Temperature: 10-60°C Flow rate: 28.5/34.5 l/min. Pressure: 5 bar Speed: 1450/1740 rpm Pressure relief valve Opening pressure: 8 bar Adjustment range: 2-20 bar Rotation direction: right Test run: yes, with HLPD 46 Coupling: BKUA040-1424-301 Pump support with base: BLF052200110LA21 Three-phase motor: LDM090-04-202 (Siemens) Engine data: Power 1+2:1.5 kW Speed 1/2:1500/1800 rpm. Voltage/frequency 1:230/400 volts at 50 Hz Voltage/frequency 2:460 volts - star at 60 Hz Efficiency class: IE3 with additional label (without CE and IE3 marking): Voltage/frequency: 220-240/380-420 V at 50 Hz 440-480 volts - star at 60 Hz Protection class: IP 55 Motor protection: PTC cold conductor Insulation class: F Type: B 5 Aggregate paint: without Type plate: ETY924-D/E—PE02 |
| Weight | 30 |
Please contact us to request a price quote for Steimel - A-SF2/20RD-VLFM,, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
Where can I buy A-SF2/20RD-VLFM, by Steimel in United Kingdom?
You can purchase A-SF2/20RD-VLFM, by Steimel from RADWARD LTD. We serve customers across United Kingdom, offering competitive prices and reliable service.
What is the price of the A-SF2/20RD-VLFM,?
For customized pricing and availability, please fill out our contact form or give us a call. We are dedicated to providing solutions that align with your specific requirements.
Who is the official distributor or seller of Steimel in United Kingdom?
While we are not the official distributor or seller of Steimel in United Kingdom, we source our products from reliable channels and offer you original Steimel equipment at competitive prices.
How can I access A-SF2/20RD-VLFM, catalogs, user manuals, technical documents, and PDFs?
You can access catalogs, user manuals, and technical documents for A-SF2/20RD-VLFM, on our website. Visit our resources section or contact us directly for specific documents.
Do you provide technical support for A-SF2/20RD-VLFM,?
While we do not offer direct technical support, we can assist you in contacting the manufacturer to ensure you receive the support you need.
