Stober - MV0000036173 , type ED706BSABQTO140
| Manufacturer | Stober |
|---|---|
| Part Number | MV0000036173 , type ED706BSABQTO140 |
| Inner Code | 1800601 |
| Description | Synchron-Servomotor |
| Custom Code | 85015230 |

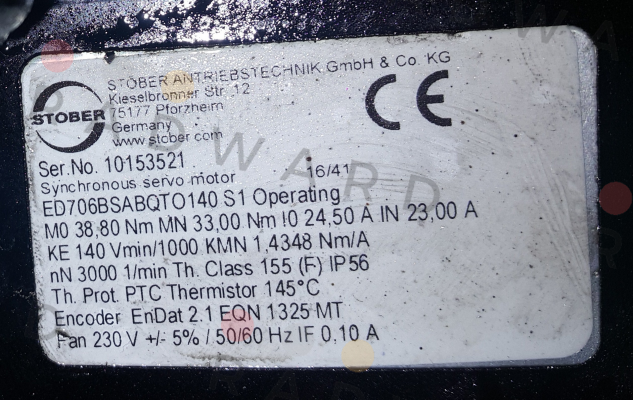

| Technical specification | Standstill current 24.50 A Rated current 23.00 A standstill torque 38.80 Nm Engine torque 33.00 Nm engine speed 3000 rpm Motor power 10.37 kW ED/EK type designation ED706BSABQTO140 motor cooling type extraneous ventilated IC 416 output side MGS Ø 200 pr. 130 lkr. 165 shaft design RC6, Ø25 Drive controller manufacturer STOBER Encoder plug size/type STOBER drive controller con.23 DC link voltage 540V DC link voltage Drive Controller Type/MDS5000 Connector encoder type EnDat MT D multiturn digital encoder type OPT 2.1 EQN 1325 Rated speed rated 3000 rpm 540V (KE= 140) ED plug type angle rotatable mating connector Without mating plug power connection connector 8 pin con.23 Connection type location plug position 270° Cable entry left * PTC thermal motor protection in power connector/KLK Ambient temperature -15 to +40°C standard Thermal class (VDE 0530) 155 F Degree of protection (EN 60529) IP56 (EN 60529) Number of nameplates nameplate + 1 loose S1 Operating Mode Servomotors sprocket 89292 module 1.5 teeth 28 helix angle 20° Right flank direction Paint 2KG/2-Comp. primer colour RAL 9005 deep black painting options downforce not painted Documentation language German English documentation language |
| Weight | 29.2 |
Please contact us to request a price quote for Stober - MV0000036173 , type ED706BSABQTO140, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
