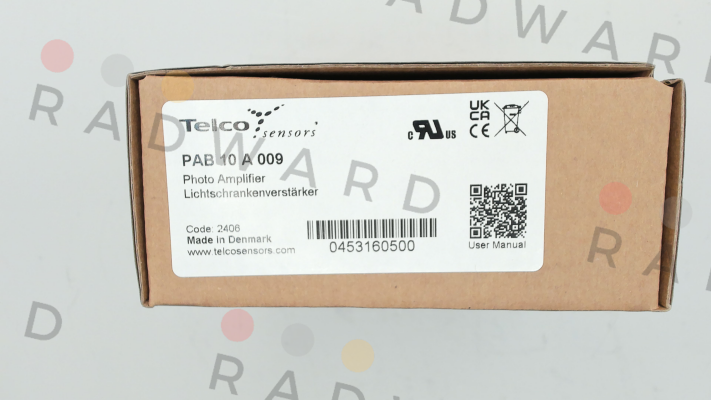

Telco - p/n: 10766, Type: PABA 10 A 009
| Manufacturer | Telco |
|---|---|
| Part Number | p/n: 10766, Type: PABA 10 A 009 |
| Inner Code | 1385568 |
| Description | Photoelectric Amplifier Bus Auto |
| Technical specification | Function Amplifier Supply Voltage 10 – 30 V dc / 24 V ac Number of Channels 1 Sensing Range 39 m Sensitivity Adjustment Automatic gain adjustment with adjustable excess gain Output Relay Timer On/Off Delay Housing Removable screw terminals Technical Data Supply Voltage 10 - 30 V dc or 24 V ac Voltage Tolerance +/- 10 % Current Consumption Max. 1,7 W Response Time ton / toff, Relay Short range: 27 ms / 20 ms Long range: 45 ms / 38 ms Output, Relay 250 V ac / 3 A, 120 V ac / 5 A Alarm Output, Transistor PNP - 30 V dc / 100 mA Test Input Yes Power On Indicator Green LED Output Indicator Yellow LED Alarm Indicator Red / yellow LED LR Sensor Failure Indicator Yelow LED LT Sensor Failure Indicator Red LED Master/Slave Address Indicator Green / orange LED Signal Level Indicator Green LED Sensor Monitor LED Drive Green LED on the receiver: ‘Power ON’ Yellow LED on the transmitter: PAB output activated Hysteresis Approx. 35 % Operation Frequency, Relay Short range: 21 Hz Long range: 12 Hz Delay Time ton / toff 0 – 10 sec, adjustable Housing Material Polyamide Environmental Data Operation Temperature – 10 to +50 °C Storage Temperature – 40 to +80 °C Sealing Class IP 40 |
| Weight | 0.132 |
Please contact us to request a price quote for Telco - p/n: 10766, Type: PABA 10 A 009, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
Where can I buy p/n: 10766, Type: PABA 10 A 009 by Telco in United Kingdom?
You can purchase p/n: 10766, Type: PABA 10 A 009 by Telco from RADWARD LTD. We serve customers across United Kingdom, offering competitive prices and reliable service.
What is the price of the p/n: 10766, Type: PABA 10 A 009?
For customized pricing and availability, please fill out our contact form or give us a call. We are dedicated to providing solutions that align with your specific requirements.
Who is the official distributor or seller of Telco in United Kingdom?
While we are not the official distributor or seller of Telco in United Kingdom, we source our products from reliable channels and offer you original Telco equipment at competitive prices.
How can I access p/n: 10766, Type: PABA 10 A 009 catalogs, user manuals, technical documents, and PDFs?
You can access catalogs, user manuals, and technical documents for p/n: 10766, Type: PABA 10 A 009 on our website. Visit our resources section or contact us directly for specific documents.
Do you provide technical support for p/n: 10766, Type: PABA 10 A 009?
While we do not offer direct technical support, we can assist you in contacting the manufacturer to ensure you receive the support you need.
