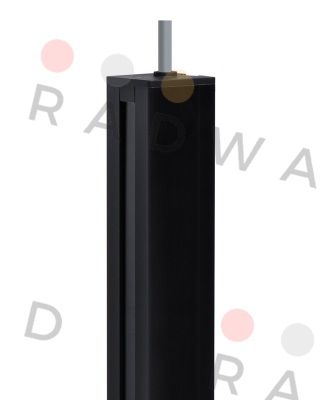

Telco - p/n: 14844, Type: SSR 02-054-096-05-H-AC2-DP2-0.5-J12
| Manufacturer | Telco |
|---|---|
| Part Number | p/n: 14844, Type: SSR 02-054-096-05-H-AC2-DP2-0.5-J12 |
| Inner Code | 1386041 |
| Description | Measuring Light Curtain |
| Technical specification | Operation Mode Thru Beam Function Receiver Supply Voltage 18 - 30 V dc Active Height 480 mm Channel Spacing 5 mm Sensing Range 10 m Output 2 x PNP + Analog. (RS-485) Output Status N.C. / N.O. Housing 33 x 36 mm Length 540 mm Connection 0.5 m cable with 12 pin, M12 plug Features RS-485 communication port Supply Voltage 18 - 30 V dc Reverse Polarity Protected Yes Short Circuit Protected Yes Current Consumption 75 mA Output Type 2 x Digital Output (Transistor) PNP Analogue Out. 4-20 mA / 0-10 V (2-wires) Output Rating Digital Output: 100 mA Analogue Output: Current <600 Ohm - Voltage >1kOhm Number of Channels 96 Number of Cross Scanning Beams 286 Number of Parallel Beams 96 Distance, Beams Pinch Point 2,5 mm Channel Spacing 5 mm Response Time Beams: Parallel 13,5 ms / Cross 36,3 ms Power On Indicator Green LED Output Indicator Yellow LED System Status Indicator Red LED Profile Dimensions (w x d) 33 x 36 mm Housing Material, Front Lens Polycarbonate Housing Material, Profile Aluminium (black anodised) Cable 12 x 0,2 mm² Cable Sleeve PVC Ø 5,9 mm Environmental Data Vibration 10 - 55 Hz, 0,5 mm Shock 30 g Operation Temperature -30 to +60 °C Storage Temperature -40 to +80 °C Sealing Class IP 67 Light Immunity 5˚ > 100 000 lux |
| Weight | 1 |
Please contact us to request a price quote for Telco - p/n: 14844, Type: SSR 02-054-096-05-H-AC2-DP2-0.5-J12, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
Where can I buy p/n: 14844, Type: SSR 02-054-096-05-H-AC2-DP2-0.5-J12 by Telco in United Kingdom?
You can purchase p/n: 14844, Type: SSR 02-054-096-05-H-AC2-DP2-0.5-J12 by Telco from RADWARD LTD. We serve customers across United Kingdom, offering competitive prices and reliable service.
What is the price of the p/n: 14844, Type: SSR 02-054-096-05-H-AC2-DP2-0.5-J12?
For customized pricing and availability, please fill out our contact form or give us a call. We are dedicated to providing solutions that align with your specific requirements.
Who is the official distributor or seller of Telco in United Kingdom?
While we are not the official distributor or seller of Telco in United Kingdom, we source our products from reliable channels and offer you original Telco equipment at competitive prices.
How can I access p/n: 14844, Type: SSR 02-054-096-05-H-AC2-DP2-0.5-J12 catalogs, user manuals, technical documents, and PDFs?
You can access catalogs, user manuals, and technical documents for p/n: 14844, Type: SSR 02-054-096-05-H-AC2-DP2-0.5-J12 on our website. Visit our resources section or contact us directly for specific documents.
Do you provide technical support for p/n: 14844, Type: SSR 02-054-096-05-H-AC2-DP2-0.5-J12?
While we do not offer direct technical support, we can assist you in contacting the manufacturer to ensure you receive the support you need.
