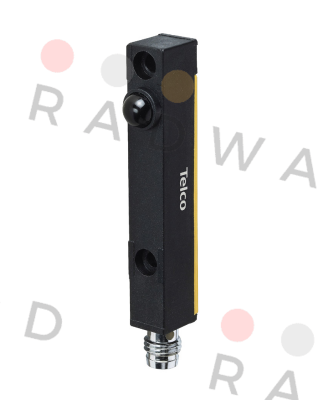

Telco - p/n: 5529, Type: SMR 6202 SG T3
| Manufacturer | Telco |
|---|---|
| Part Number | p/n: 5529, Type: SMR 6202 SG T3 |
| Inner Code | 1385834 |
| Description | Thru Beam Photoelectric Sensor |
| Technical specification | SM 6000 SPACEMASTER™ SERIES Operation Mode Thru Beam Function Receiver Supply Voltage 10 - 32 V dc Sensing Range 2 m Output PNP Output Status N.C. Housing 9,5 x 11,5 Housing Material Plastic Connection 3 pin, M8 plug Technical Data Supply Voltage 10 - 32 V dc Voltage Ripple 15 % Reverse Polarity Protected Yes Short Circuit Protected Yes Current Consumption Max. 320 mW Max. Output Load 100 mA Max. Residual Voltage 2,5 V Max. Operation Frequency 1000 Hz Response Time ton / toff 0,5 ms / 0,5 ms Output Indicator Yellow LED Hysteresis Approx. 30 % Opening Angle +/- 6° Housing Material, Front Lens Polycarbonate Housing Material, Sensor Housing Polyester Cable 3/4 x 0,14 mm² Cable Sleeve PVC Ø 4,0 mm Environmental Data Vibration 10 - 55 Hz, 0.5 mm Shock 30 g Operation Temperature -20 to +60 °C Storage Temperature -40 to +80 °C Sealing Class IP 67 Light Immunity 5˚ > 50 000 lux |
| Weight | 1 |
Please contact us to request a price quote for Telco - p/n: 5529, Type: SMR 6202 SG T3, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
Where can I buy p/n: 5529, Type: SMR 6202 SG T3 by Telco in United Kingdom?
You can purchase p/n: 5529, Type: SMR 6202 SG T3 by Telco from RADWARD LTD. We serve customers across United Kingdom, offering competitive prices and reliable service.
What is the price of the p/n: 5529, Type: SMR 6202 SG T3?
For customized pricing and availability, please fill out our contact form or give us a call. We are dedicated to providing solutions that align with your specific requirements.
Who is the official distributor or seller of Telco in United Kingdom?
While we are not the official distributor or seller of Telco in United Kingdom, we source our products from reliable channels and offer you original Telco equipment at competitive prices.
How can I access p/n: 5529, Type: SMR 6202 SG T3 catalogs, user manuals, technical documents, and PDFs?
You can access catalogs, user manuals, and technical documents for p/n: 5529, Type: SMR 6202 SG T3 on our website. Visit our resources section or contact us directly for specific documents.
Do you provide technical support for p/n: 5529, Type: SMR 6202 SG T3?
While we do not offer direct technical support, we can assist you in contacting the manufacturer to ensure you receive the support you need.
