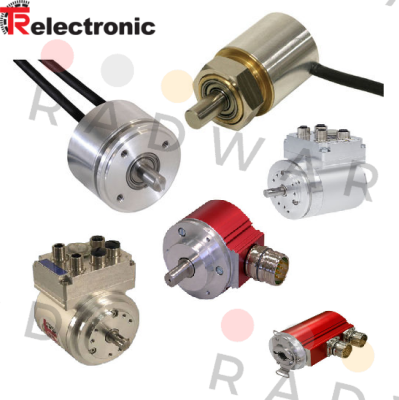

TR Electronic - CEW582M-10166

Manufacturer TR Electronic
Part Number CEW582M-10166
Inner Code 4750312
Custom Code 90318020
Technical specification CEW582M*8192/4096 EPN (ALT:CEW58M-00166) NUMBER OF STEPS 8,192,000 TURNS 4.096,000 CONFIGURABLE VIA INTERFACE Profinet IO INTERFACE CODE BINARY SUPPLY VOLTAGE 10-30V PROTECTION CLASS SEE SLG WORKING TEMPERATURE -20°C... +75°C WAVE VARIANT CABLE LENGTH SENSOR (SLG) SHAFT DESIGN COUPLING PIECE CONNECTOR TYPE 1x M12 04-PIN A-CODE MALE 2x M12 04-PIN D-CODE FEMALE RADIAL CONNECTION DIRECTION PLUG CONFIGURATION NUMBER TR-ECE-TI-DGB-0306 OPTION ENC REPLACEMENT FOR C_58 CABLE OUTLET -> 270°CCW PLUG SLG ME-WDS-P85-M 2.5M SLG ITEM NUMBER 40730001 DRAWING NO. 04-CEW582M-M0053 AL: N ECCN: N mtTFD [y] (T=45°C, DC=0) >= 100 UL APPROVALS USA+CANADA SLG TRANSLATION 199.52... 200.32 mm/rev. SLG LINEARITY +/ -0.035% SLG TEMPERATURE RANGE -20°C.. +80°C SLG PROTECTION CLASS IP54/ IP65 OUTLET AT THE BOTTOM SLG SPRING FORCE min.5N/max.17N SLG B10 VALUE 850,000 at 52,800 cycles p.a. SLG ROPE DIAMETER 1.2 mm SLG EXTENSION ANGLE max. +/-3
Weight 1.3

Please contact us to request a price quote for TR Electronic - CEW582M-10166, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.


WE SELL ONLY NEW AND ORIGINAL PRODUCTS!

Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.

Where can I buy CEW582M-10166 by TR Electronic in United Kingdom?

You can purchase CEW582M-10166 by TR Electronic from RADWARD LTD. We serve customers across United Kingdom, offering competitive prices and reliable service.

What is the price of the CEW582M-10166?

For customized pricing and availability, please fill out our contact form or give us a call. We are dedicated to providing solutions that align with your specific requirements.

Who is the official distributor or seller of TR Electronic in United Kingdom?

While we are not the official distributor or seller of TR Electronic in United Kingdom, we source our products from reliable channels and offer you original TR Electronic equipment at competitive prices.

How can I access CEW582M-10166 catalogs, user manuals, technical documents, and PDFs?

You can access catalogs, user manuals, and technical documents for CEW582M-10166 on our website. Visit our resources section or contact us directly for specific documents.

Do you provide technical support for CEW582M-10166?

While we do not offer direct technical support, we can assist you in contacting the manufacturer to ensure you receive the support you need.
