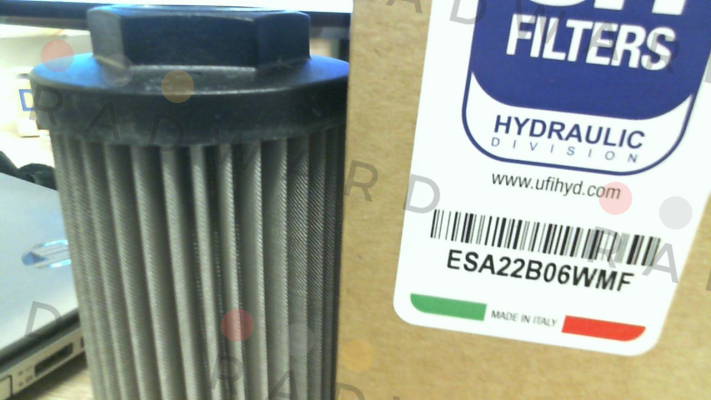

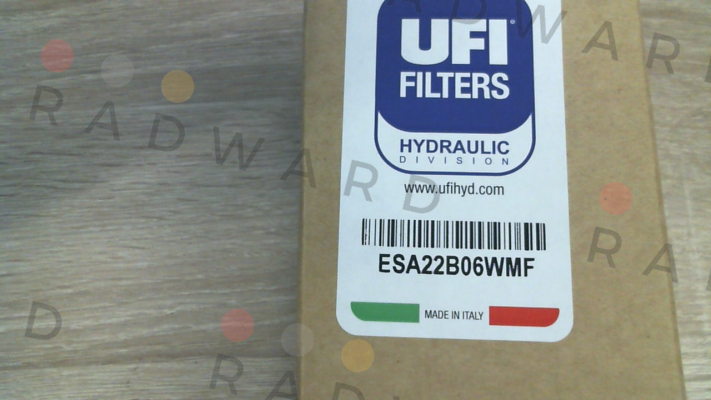

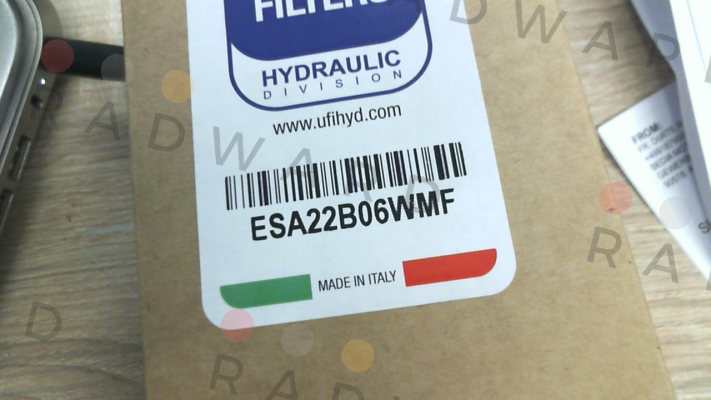

Ufi (SOFIMA FILTERS) - old code P/N:ESA22B06WMF; Type: ESA 22 B06 WMF, new code ESA2AB06WMF

Manufacturer Ufi (SOFIMA FILTERS)
Part Number old code P/N:ESA22B06WMF; Type: ESA 22 B06 WMF, new code ESA2AB06WMF
Inner Code 270598
Description Suction filter without bypass valve
Custom Code 84212300
Technical specification UFI - Saugfilter ohne By-Pass Ventil Herstellungsmaterial: Filteranschluss: Polyamid Endkappen: Polyamid Bypassventil: Polyamid Verträglichkeit: voll geeignet für Medien: HH-HL-HM-HR-HV-HG (entsprechend ISO 6743/4) Druckbelastung: Differenz-Kollapsdruck 100 kPa (1 bar) Bypassventil: Einstellung 30 kPa (0,3 bar) +/-10% Betriebstemperatur: von -25° bis +110° C ESA= Filter komplett 22= Baureihe B= BSP - Gewinde 06= 3/4" W= ohne Bypassventil MF= Metallgewebe 90μ
Weight 0.22

Please contact us to request a price quote for Ufi (SOFIMA FILTERS) - old code P/N:ESA22B06WMF; Type: ESA 22 B06 WMF, new code ESA2AB06WMF, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.


WE SELL ONLY NEW AND ORIGINAL PRODUCTS!

Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.

Where can I buy old code P/N:ESA22B06WMF; Type: ESA 22 B06 WMF, new code ESA2AB06WMF by Ufi (SOFIMA FILTERS) in United Kingdom?

You can purchase old code P/N:ESA22B06WMF; Type: ESA 22 B06 WMF, new code ESA2AB06WMF by Ufi (SOFIMA FILTERS) from RADWARD LTD. We serve customers across United Kingdom, offering competitive prices and reliable service.

What is the price of the old code P/N:ESA22B06WMF; Type: ESA 22 B06 WMF, new code ESA2AB06WMF?

For customized pricing and availability, please fill out our contact form or give us a call. We are dedicated to providing solutions that align with your specific requirements.

Who is the official distributor or seller of Ufi (SOFIMA FILTERS) in United Kingdom?

While we are not the official distributor or seller of Ufi (SOFIMA FILTERS) in United Kingdom, we source our products from reliable channels and offer you original Ufi (SOFIMA FILTERS) equipment at competitive prices.

How can I access old code P/N:ESA22B06WMF; Type: ESA 22 B06 WMF, new code ESA2AB06WMF catalogs, user manuals, technical documents, and PDFs?

You can access catalogs, user manuals, and technical documents for old code P/N:ESA22B06WMF; Type: ESA 22 B06 WMF, new code ESA2AB06WMF on our website. Visit our resources section or contact us directly for specific documents.

Do you provide technical support for old code P/N:ESA22B06WMF; Type: ESA 22 B06 WMF, new code ESA2AB06WMF?

While we do not offer direct technical support, we can assist you in contacting the manufacturer to ensure you receive the support you need.

Ufi (SOFIMA FILTERS)-old code P/N:ESA22B06WMF; Type: ESA 22 B06 WMF, new code ESA2AB06WMF price
