Ultra Pompe - GP-200-K1V-B-1G0

Manufacturer Ultra Pompe
Part Number GP-200-K1V-B-1G0
Inner Code 4489885
Technical specification UGP0200K1VB000 0R1G0 200 cc/rev (R right) Feet assembly Valve: standard safety Heating: NA Connections: 2" G Body: G25 Cast Iron Seal: steel/carbon-graphite/FPM Gaskets: FPM Rotors: Nitrided Steel 39 NiCrMo3 Bearings: steel/PTFE Wear plans: NA Operating parameters - Rated speed: - rpm Maximum nominal flow: - l/min Working pressure: (IN) 0 (OUT) 4 (VALV) 4 bar Fluid: OIL Fluid viscosity: 150... 350 cSt Fluid temperature: +10... +40°C
Weight 45

Please contact us to request a price quote for Ultra Pompe - GP-200-K1V-B-1G0, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.


WE SELL ONLY NEW AND ORIGINAL PRODUCTS!

Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.

Where can I buy GP-200-K1V-B-1G0 by Ultra Pompe in United Kingdom?

You can purchase GP-200-K1V-B-1G0 by Ultra Pompe from RADWARD LTD. We serve customers across United Kingdom, offering competitive prices and reliable service.

What is the price of the GP-200-K1V-B-1G0?

For customized pricing and availability, please fill out our contact form or give us a call. We are dedicated to providing solutions that align with your specific requirements.

Who is the official distributor or seller of Ultra Pompe in United Kingdom?

While we are not the official distributor or seller of Ultra Pompe in United Kingdom, we source our products from reliable channels and offer you original Ultra Pompe equipment at competitive prices.

How can I access GP-200-K1V-B-1G0 catalogs, user manuals, technical documents, and PDFs?

You can access catalogs, user manuals, and technical documents for GP-200-K1V-B-1G0 on our website. Visit our resources section or contact us directly for specific documents.

Do you provide technical support for GP-200-K1V-B-1G0?

While we do not offer direct technical support, we can assist you in contacting the manufacturer to ensure you receive the support you need.

Ultra Pompe-GP-200-K1V-B-1G0 price
3 / 5
★ ★ ★ ★ ★
(1)
Comments

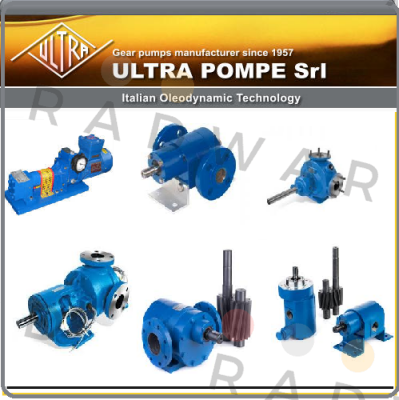

More products of Ultra Pompe

  • GEAR PUMP GL-35-VB – 1,5KW 4P

    - Description: Pump with lantern, coupling and drive Electric motor 1,5 Kw 4 Poles B3/B5 90L 400/50- 480/60 Cast Iron Pump Rotation CW Internal safety valve FPM sealing elements. Mech. seal made of Stainless Steel – Carbon Graphite –FPM + lip seal FPM Displacement: 35 cc/rev Rated speed: 1400 rpm Theoric delivery: at 1 bar 49 l/min Max. Temperature: --°c Max. Pressure: -- bar Viscosity range: -- cSt

  • GEAR PUMP GL-35-VBS – 1,5KW 4P

    Description: Pump with lantern, coupling and drive Electric motor 1,5 Kw 4 Poles B3/B5 90L 400/50- 480/60 Cast Iron Pump Rotation CCW Internal safety valve FPM sealing elements. Mech. seal made of Stainless Steel – Carbon Graphite –FPM + lip seal FPM Displacement: 35 cc/rev Rated speed: 1400 rpm Theoric delivery: 49 l/min at 1 bar Max. Temperature: --°c Max. Pressure: -- bar Viscosity range: -- cSt

  • GEAR PUMP GL-42– 1,1KW 6P

    Pump with lantern, coupling and drive Electric motor 1,1 Kw 6 Poles B3/B5 400/50- 480/60 90L Cast Iron Pump Internal safety valve FPM sealing elements. Mech. seal made of Stainless Steel – Carbon Graphite –FPM + lip seal FPM, Displacement: 42 cc/rev Rated speed: 900 rpm Theoric delivery: at 1 bar -220 cSt 37 l/min Max. Temperature: --°c Max. Pressure: 10 bar

  • GEAR PUMP GL-42– 3KW 4P

    Pump with lantern, coupling and drive Electric motor 3 Kw 4 Poles B3/B5 400/50- 480/60 100L Cast Iron Pump Internal safety valve FPM sealing elements. Mech. seal made of Stainless Steel – Carbon Graphite –FPM + lip seal FPM Displacement: 42 cc/rev Max. Temperature: --°c Rated speed: 1400 rpm Max. Pressure: -- bar Theoric delivery: at 1 bar 59 l/min Viscosity range: -- cSt

  • GEAR PUMP GL-52-VB – 1,5KW 8P

    Pump with lantern, coupling and drive Electric motor 1,5 Kw 8 Poles B3/B5 400/50- 480/60 112M Cast Iron Pump Internal safety valve FPM sealing elements. Mech. seal made of Stainless Steel – Carbon Graphite –FPM + lip seal FPM, Displacement: 52 cc/rev Rated speed: 700 rpm Theoric delivery: at 1 bar -220 cSt 36 l/min Max. Temperature: --°c Max. Pressure: 10 bar

  • GEAR PUMP GL-93-VB – 4KW 4P

    Pump with lantern, coupling and driveElectric motor 4 Kw 4 Poles B3/B5 400/50- 480/60 112MCast Iron PumpInternal safety valveFPM sealing elements.Mech. seal made of Stainless Steel – Carbon Graphite –FPM + lip seal FPM, Displacement: 93 cc/rev Rated speed: 1400 rpm Theoric delivery:at 1 bar - 220 cSt130 l/minMax. Temperature: --°c Max. Pressure: 10 bar

  • GEAR PUMP GL-93-VB – 4KW 4P

    Pump with lantern, coupling and drive Electric motor 4 Kw 4 Poles B3/B5 400/50- 480/60 112M Cast Iron Pump Internal safety valve FPM sealing elements. Mech. seal made of Stainless Steel – Carbon Graphite –FPM + lip seal FPM Displacement: 93 cc/rev Max. Temperature: --°c Rated speed: 1400 rpm Max. Pressure: -- bar Theoric delivery: at 1 bar 130 l/min Viscosity range: -- cSt

  • GL 144 V B

    PUMP TYPE: GEAR, DISCHARGE PRESSURE: 10 BAR, DIRECTION OF ROTATION CLOCKWISE WHEN VIEWED FROM MOTOR DRIVE END, APPLICATION: FOR COLD SHEAR LUBRICATION, RM-5

  • GL 144 VB

    pump with lantern and coupling

  • LF 21 B

    Gear pump

  • LF 28 AB

    Gear pump

  • LF10B.

    Q:0.87m3/h P:10bar 1100rpm 0.5kw

  • LF21B.

    Q:1.8m3/h P:10bar 710rpm 0.75kw

  • SL-14-V-WN

    Gear pump with lantern (no coupling, no drive)

  • 24602

    gear pump NMFH 14 Tag NO 8P-105

  • SL-14-V-OH-WN

    GearcPump with lantern (no coupling, no drive)

  • 24601

    gear pump NMFH 14 Tag NO 8P-108

  • SL-28-V-WN

    Gear Pump with lantern (no coupling, no drive)

  • 24606

    gear pump NMFH 28 Tag NO 8P-607B

  • L-14-BS

    Kit mechanical seal + gasket seal
