P/N 106004 Type: Industrial OG-TI100-PVC Badger Meter Sales In United Kingdom

Manufacturer Badger Meter
Part Number P/N 106004 Type: Industrial OG-TI100-PVC
Inner Code 4449468

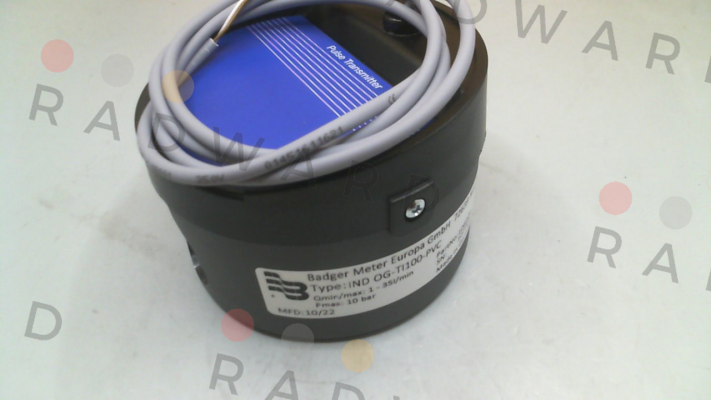

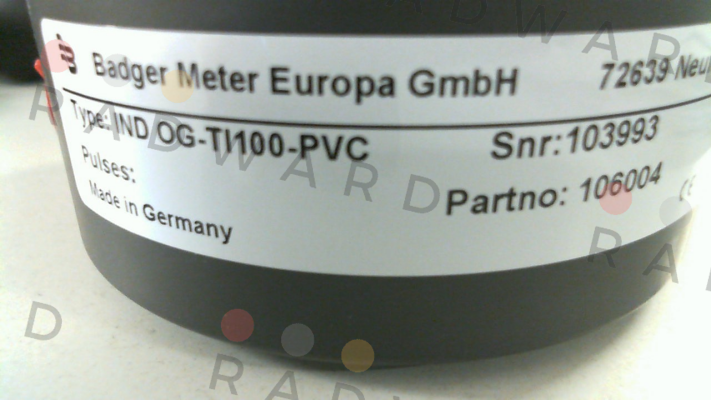

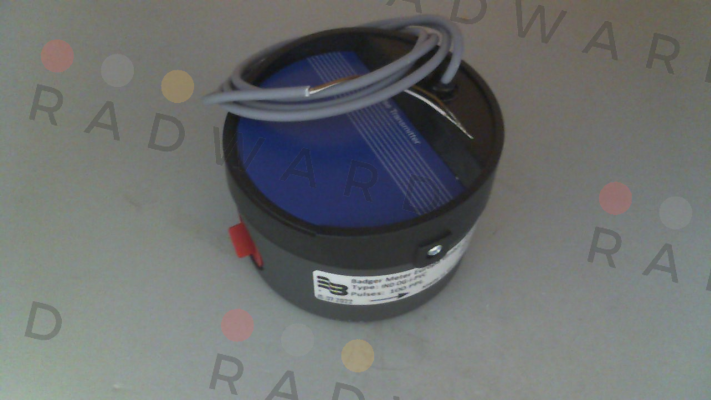

Description Pulse transmitter
Custom Code 90282000
Technical specification LM OG 1/2" BSP PVC 1.4305 Vectra Viton 1-35 l/min with reed contact 100 PPL Oval wheel meter type OG_TI_100 in PVC version Material and technical data Measuring principle: oval wheel counter Housing: PVC plastic Lid: 304 stainless steel Oval wheels: plastic Vectra (LCP plastic) O-ring: Viton Measuring range: 1-35 l/min Measurement accuracy: +/- 0.5% of reading Viscosity range: 1-2000mPas p-max: 10 bar t-max: 45°C Pulse output: through reed contact 100 pulses/ litres Installation length: 82 mm Connection: female thread R 1/2"
Weight 0.9

Please contact us to request a price quote for Badger Meter - P/N 106004 Type: Industrial OG-TI100-PVC, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.


WE SELL ONLY NEW AND ORIGINAL PRODUCTS!

Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.

Where can I buy P/N 106004 Type: Industrial OG-TI100-PVC by Badger Meter in United Kingdom?

You can purchase P/N 106004 Type: Industrial OG-TI100-PVC by Badger Meter from RADWARD LTD. We serve customers across United Kingdom, offering competitive prices and reliable service.

What is the price of the P/N 106004 Type: Industrial OG-TI100-PVC?

For customized pricing and availability, please fill out our contact form or give us a call. We are dedicated to providing solutions that align with your specific requirements.

Who is the official distributor or seller of Badger Meter in United Kingdom?

While we are not the official distributor or seller of Badger Meter in United Kingdom, we source our products from reliable channels and offer you original Badger Meter equipment at competitive prices.

How can I access P/N 106004 Type: Industrial OG-TI100-PVC catalogs, user manuals, technical documents, and PDFs?

You can access catalogs, user manuals, and technical documents for P/N 106004 Type: Industrial OG-TI100-PVC on our website. Visit our resources section or contact us directly for specific documents.

Do you provide technical support for P/N 106004 Type: Industrial OG-TI100-PVC?

While we do not offer direct technical support, we can assist you in contacting the manufacturer to ensure you receive the support you need.

Badger Meter-P/N 106004 Type: Industrial OG-TI100-PVC price
