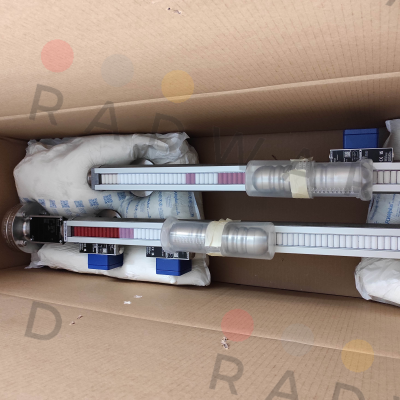

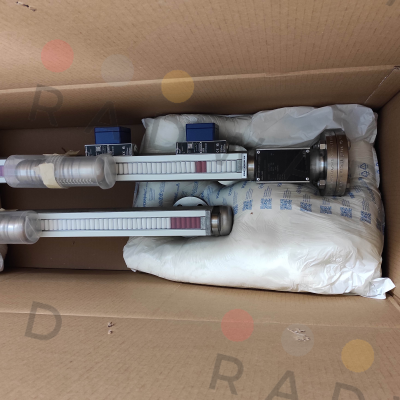

Ksr Kuebler - BNA-EN15/16/B1-M740-V60x2-MRA-2/M-ZVSS 200
| Manufacturer | Ksr Kuebler |
|---|---|
| Part Number | BNA-EN15/16/B1-M740-V60x2-MRA-2/M-ZVSS 200 |
| Inner Code | 4886431 |

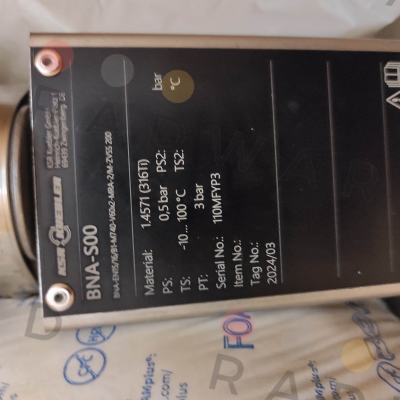

| Technical specification | Bypass level indicator type BNA-S00 Pressure: 0.5 bar; temp.: -10°C... 100°C; density, medium: 1000 kg/m³ Design: DGRL 2014/68/EU (AD2000) Test pressure: 3 bar Chamber dimensions: 60.3 x 2 mm stainless steel 1.4571 (316Ti) Process connection: DIN EN 1092-1 DN 15 PN 16 form B1 flange Center distance: 740 mm Measurement range: 740 mm Upper chamber end: tube bottom Lower chamber closure: D130 flange Drain: G 1/2" plug Floater: ZVSS200 Display: BMD-SA, aluminum profile with plastic wheels Damping element: bottom damping spring with cover Seal (s): Sigraflex Universal Pro Screws: stainless steel A4-70 (M) Overhang at the top (T): 100 mm Bottom overhang (U): 200 mm Distance from lower process connection to end of outlet: 260 mm (max.) Side distance (X): 100 mm (max) Type plate: laser marked aluminum Weight: 9.5 kg BGU-A/R22 BGU-AR BGU-AR Bypass Magnetic Switch Basic type: BGU-A, reed, aluminum junction box, cable screw max. AC 50 V; 40 VA; 300 mA/DC 75 V; 20 W; 300 mA Number of switches: 2 Electrical connection: M16x1.5 mm cable screw Process temperature -40°C to 100°C Protection class: IP66/68 Contact circuit: With 22 ohm series resistor for PLC |
| Weight | 9.5 |
Please contact us to request a price quote for Ksr Kuebler - BNA-EN15/16/B1-M740-V60x2-MRA-2/M-ZVSS 200, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
Where can I buy BNA-EN15/16/B1-M740-V60x2-MRA-2/M-ZVSS 200 by Ksr Kuebler in United Kingdom?
You can purchase BNA-EN15/16/B1-M740-V60x2-MRA-2/M-ZVSS 200 by Ksr Kuebler from RADWARD LTD. We serve customers across United Kingdom, offering competitive prices and reliable service.
What is the price of the BNA-EN15/16/B1-M740-V60x2-MRA-2/M-ZVSS 200?
For customized pricing and availability, please fill out our contact form or give us a call. We are dedicated to providing solutions that align with your specific requirements.
Who is the official distributor or seller of Ksr Kuebler in United Kingdom?
While we are not the official distributor or seller of Ksr Kuebler in United Kingdom, we source our products from reliable channels and offer you original Ksr Kuebler equipment at competitive prices.
How can I access BNA-EN15/16/B1-M740-V60x2-MRA-2/M-ZVSS 200 catalogs, user manuals, technical documents, and PDFs?
You can access catalogs, user manuals, and technical documents for BNA-EN15/16/B1-M740-V60x2-MRA-2/M-ZVSS 200 on our website. Visit our resources section or contact us directly for specific documents.
Do you provide technical support for BNA-EN15/16/B1-M740-V60x2-MRA-2/M-ZVSS 200?
While we do not offer direct technical support, we can assist you in contacting the manufacturer to ensure you receive the support you need.
