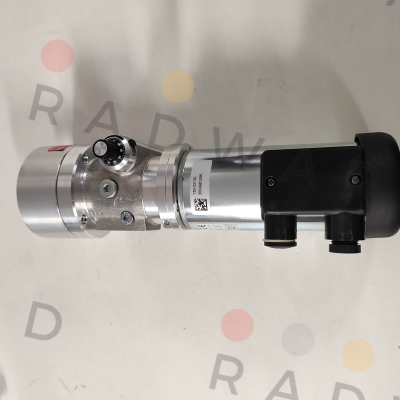

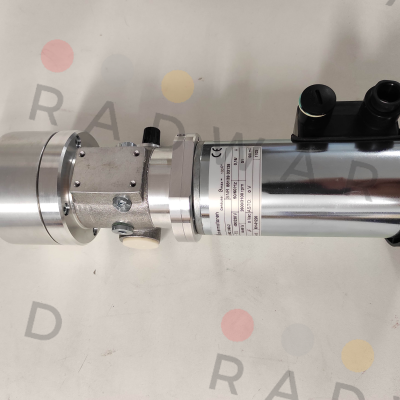

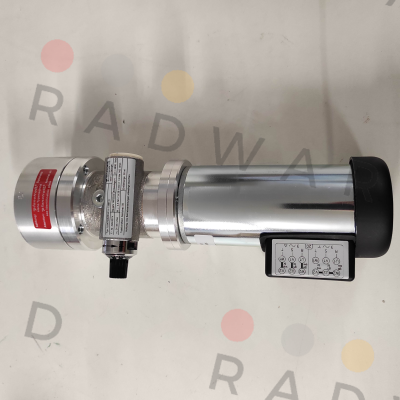

Planetroll - 602-08042
| Manufacturer | Planetroll |
|---|---|
| Part Number | 602-08042 |
| Inner Code | 4317580 |
| Description | variable speed gearbox |
| Custom Code | 85015100 |
| Technical specification | Planetroll variable speed drive unit Type 0,047D2MRVP11-7,667-0 (11k6x23) =============================== consisting of: --------------------- a) Three-phase motor b) Variable speed transmission “p l a r o m a s t e r” c) Planetary gears specifications ------------------------- Installation side: right Design: B14-like Installation position: 4 Speed range: 0 to approx. 145/174 1/min (50/60 Hz) Output torques: approx. 4.5 Nm from 7.8/9.4 to 26 1/min approx. 1.5/1.2 NM at 145/174 rpm Drive components ------------------------------ 501-01220 three-phase motor 0.044/0.046 kW, 2600/3100 rpm, 230/400 V, 50/60 Hz, 0.27/0.16 A, IP 40, Isol.Kl.E, flange B14-62, centering collar diameter 26, shaft 9 x 25 mm 302-00008 plaromaster type MRV variable speed gearbox On the drive side: hollow drive shaft Ø9 with clamping element; centering Ø25, 4x Ø4.5 on TK36 On the output side: for mounting on type P11 planetary gears 302-00002 Control element type: HVN, coarse scale 0-12, fine scale 0-100 301-00962 On the output side, planetary gearbox type P11-0, reduction i = 7.667, 4x Bo.M4 to TC diameter 47, Output shaft dia.11k6 x 23, (max.allowable output torque M2=4.5 Nm). |
| Weight | 4 |
Please contact us to request a price quote for Planetroll - 602-08042, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
